ATC 7035L SERIES FIBER LASER

Tube Laser Cutting Machine

Enclosed Φ 350 Tube laser
Three chuck, Precise & Zero tail

High-performance fiber laser tube cutting solution designed for large diameter pipes, full-length processing, and zero tail cutting in demanding industrial applications.

Product Showcase

Watch our product in action, and product images for better understanding

Key Features

Full stroke three chuck cutting system
Large diameter tube processing capability
Near zero tail material optimization
High speed gear driven chuck rotation
Dual jaw and roller support design
Advanced tube nesting software integration
High precision and stable cutting performance

Key Applications

Heavy structural fabrication
Infrastructure and construction industries
Oil and gas pipeline components
Large diameter pipe processing
Industrial and engineering fabrication
Automotive and heavy equipment manufacturing

Material Thickness & Laser Power Chart

Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.

Material Thickness & Laser Power Chart

Laser Power	3 kW	4 kW	6 kW	8 kW	10 kW	12 kW	15 kW	20 kW	30 kW
Cutting Thickness on Metals mm (inch)
Mild Steel (MS) (O₂)	20 (3/4")	22 (7/8")	25 (1")*	28 (9/8")*	30 (19/16")*	40 (25/16")*	45 (7/4")*	50 (31/16")*	60 (19/8")*
Mild Steel (MS) (N₂ / Air)	6 (1/4")	6 (1/4")	8 (5/16")	10 (3/8")	12 (1/2")	12 (1/2")	16 (5/8")	20 (13/16")	25 (1")*
Stainless Steel (SS) (O₂)	10 (3/8")	10 (3/8")	10 (3/8")	10 (3/8")	10 (3/8")*	10 (3/8")	10 (3/8")	10 (3/8")	10 (3/8")
Stainless Steel (SS) (N₂ / Air)	8 (5/16")	10 (3/8")	16 (5/8")*	20 (13/16")	25 (1")*	30 (19/16")*	32 (5/4")*	35 (11/8")*	40 (25/16")*
Aluminum (AL) (N₂)	8 (5/16")	10 (3/8")	16 (5/8")*	20 (13/16")	25 (1")*	30 (19/16")*	32 (5/4")*	35 (11/8")*	40 (25/16")*
Brass (Br) (N₂)	6 (1/4")	8 (5/16")	12 (1/2")	16 (5/8")	20 (13/16")	25 (1")*	30 (19/16")*	32 (5/4")*	35 (11/8")*
Copper (Cu) (O₂)	5 (3/16")	6 (1/4")	8 (5/16")	10 (3/8")	12 (1/2")	16 (5/8")	18 (11/16")	20 (13/16")	22 (7/8")
Galvanized Iron (GI) (N₂ / Air)	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")	3 (1/8")

Overview

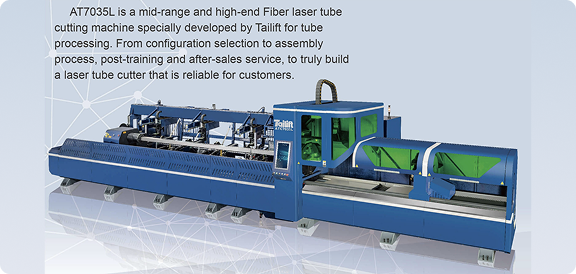

The ATC 7035L Series is a mid to high-end tube laser cutting machine developed for heavy-duty tube processing.

Designed to handle large-diameter pipes with high precision, it combines a robust mechanical structure with an advanced control system to deliver efficient, accurate, and consistent cutting performance.

With its three-chuck full-stroke design, the machine ensures maximum material utilization, minimal scrap generation, and improved productivity, making it an ideal solution for large-scale industrial fabrication, structural steel processing, and heavy engineering applications.

Technical Specifications

Specification	Option 1
Model	ATC 7035L
Laser Power	3KW – 12KW
Acceleration	Up to 1G
Positioning Accuracy	±0.03 mm / 1000 mm
Repositioning Accuracy	±0.02 mm / 1000 mm
Round Tube Capacity	Φ20 – Φ350 mm
Square Tube Capacity	Up to 200 × 200 mm
Maximum Tube Length	Up to 7100 mm
Chuck Type	Three Pneumatic Chucks
Tail Length (Scrap)	Near Zero Tailing
Control System	FSCUT5000A Tube Cutting System
Maximum Axis Movement Speed	Up to 100 m/min
Chuck Rotation Speed	Up to 100 r/min

Technology Highlights

⚠️ No Data Found

Product Description

Three-Chuck Full Stroke Cutting System

Enables continuous clamping and cutting across the full tube length, ensuring maximum utilization and minimal scrap.

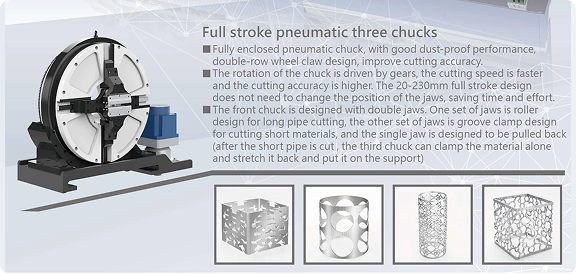

Advanced Chuck Design & Stability

Fully enclosed pneumatic chucks with dual-row jaws provide stable, precise clamping and improved cutting accuracy for both long and short pipes.

High-Speed Cutting Performance

Gear-driven chuck rotation allows faster cutting speeds with consistent precision for high-volume production.

Intelligent Control System

FSCUT5000A system with TubesT nesting software ensures fast response, smooth motion, and optimized material usage.

Zero Tail Cutting Advantage

Three-chuck design enables near-zero tailing, reducing material wastage and improving cost efficiency.

High-Speed Motion & Servo System

Acceleration up to 1G and axis speed up to 100 m/min, supported by Yaskawa servo motors, ensures stable and precise operation.

Frequently Asked Questions

Everything you need to know about the ATC 7035L SERIES FIBER LASER

1. What is the ATC 7035L tube laser cutting machine used for?

The ATC 7035L is a heavy-duty tube laser cutting machine designed for large diameter pipe processing, infrastructure fabrication, oil and gas components, and industrial engineering applications requiring high precision and productivity.

2. What is the maximum tube length the ATC 7035L can process?

The ATC 7035L can process tubes up to 7.1 meters (7100 mm) in length, making it suitable for long structural components and large-scale fabrication projects.

3. What is the maximum tube diameter capacity of the ATC 7035L?

The machine supports:

Round tubes up to Φ350 mm
Square tubes up to 200 × 200 mm

This makes it ideal for heavy-duty and large profile tube applications.

4. What makes the three chuck system important in the ATC 7035L?

The three pneumatic chuck system enables full-length cutting with continuous clamping, ensuring higher stability, better accuracy, and efficient processing of both long and short tubes.

5. Does the ATC 7035L support zero tail cutting?

Yes, the machine offers near zero tailing, allowing maximum utilization of raw material. The third chuck processes the remaining section, reducing scrap and improving cost efficiency.

6. What laser power options are available in ATC 7035L?

The ATC 7035L supports 3 kW to 12 kW fiber laser power, making it suitable for both medium and heavy-duty tube cutting applications.

7. How does the ATC 7035L improve productivity in heavy fabrication?

With high-speed gear-driven chuck rotation, 1G acceleration, 100 m/min axis speed, and intelligent nesting software, the machine ensures faster processing, reduced cycle time, and higher output.

8. What control system is used in the ATC 7035L?

The machine is equipped with the FSCUT5000A tube cutting system, combined with TubesT nesting software for precise cutting, fast response, and optimized material utilization.

9. Is the ATC 7035L suitable for large-scale industrial production?

Yes, it is specifically designed for heavy-duty industrial environments, offering stable performance, high precision, and continuous operation for demanding applications.

10. Why choose ATC 7035L over smaller tube laser machines?

The ATC 7035L offers larger diameter capacity, higher power range up to 12 kW, full-length processing, and near zero scrap, making it the ideal upgrade for manufacturers handling heavy and large tube applications.

Need Help Choosing the Right Machine?

Our comprehensive buying guide covers everything you need to know about ATC 7035L SERIES FIBER LASER, power selection, applications, and more.
