High-Speed Precision Cutting
The Jantar Series delivers highly dynamic 2D cutting performance for sheets, pipes, and profiles, ensuring precision and efficiency in industrial applications.
Plasma Cutting Machine
JANTAR SERIES PLASMA
High Speed Plasma
Precision for Sheet, Pipe & Profile
Precision for Sheet, Pipe & Profile
High-performance and cost-efficient plasma and oxy-fuel cutting machine designed for precision sheet, pipe, and profile cutting in industrial fabrication environments.
Product Showcase
Watch our product in action, and product images for better understanding
-
High-speed 2D plasma and oxy-fuel cutting performance -
Capable of cutting sheets, tubes, pipes, and profiles
-
Material thickness processing up to 100 mm
-
Highly dynamic motion system for precision cutting
-
Expandable working length for flexible production needs
-
Cost-effective solution with rich standard configuration
-
Advanced CNC system with pre-defined cutting parameters
-
Modular design for customization and upgrades
-
Compatible with multiple plasma power sources
-
Designed for continuous industrial operation
Key Features
-
Sheet metal fabrication -
Structural steel processing
-
Industrial fabrication workshops
-
Pipe and profile cutting
-
Automotive and engineering components
-
Construction and infrastructure fabrication
-
General engineering and job work industries
-
Steel service centers
Key Applications
Material Thickness & Laser Power Chart
Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.
Overview

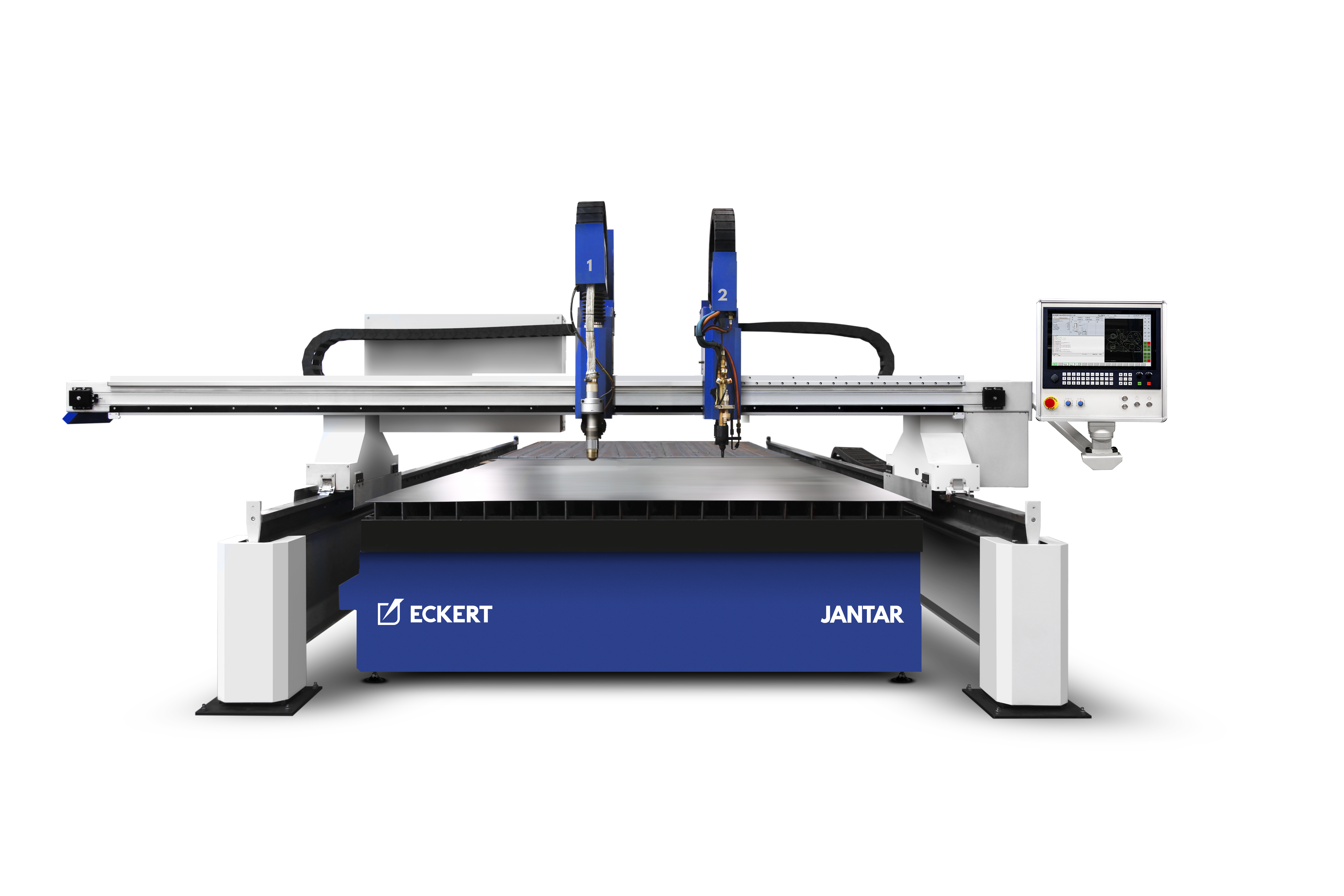

The Jantar Series is one of the most widely used Plasma and Oxy-Fuel Cutting Machines, known for its exceptional balance of performance, flexibility, and cost efficiency.
Designed for both small-scale workshops and large manufacturing facilities, the machine delivers high-speed cutting with consistent accuracy across a wide range of materials and plate thicknesses.
Its modular design allows seamless integration of additional capabilities such as drilling, marking, and pipe cutting systems, making it a highly versatile and future-ready solution for modern fabrication, heavy engineering, and industrial manufacturing environments.
Designed for both small-scale workshops and large manufacturing facilities, the machine delivers high-speed cutting with consistent accuracy across a wide range of materials and plate thicknesses.
Its modular design allows seamless integration of additional capabilities such as drilling, marking, and pipe cutting systems, making it a highly versatile and future-ready solution for modern fabrication, heavy engineering, and industrial manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Jantar |
| Drives | Servo AC |
| Cutting Width | 1500 / 2000 / 2500 / 3000 mm |
| Cutting Length | From 1500 mm (expandable) |
| Positioning Speed | 25,000 mm/min |
| Cutting Thickness | Up to 100 mm |
| Cutting Quality | EN ISO 9013 |
| Positioning Accuracy | As per EN 28206 |
| Table Height | 740 – 760 mm |
| Model | Max Piercing | Max Edge Cutting |
|---|---|---|
| Powermax 45 SYNC | 12 mm | 29 mm |
| Powermax 65 SYNC | 16 mm | 32 mm |
| Powermax 85 SYNC | 20 mm | 38 mm |
| Powermax 105 SYNC | 22 mm | 50 mm |
| Powermax 125 | 25 mm | 57 mm |
| MaxPro 200 | 32 mm | 75 mm |
| XPR 170 | 40 mm | 60 mm |
| XPR 300 | 50 mm | 80 mm |
| Model | Max Piercing | Max Edge Cutting |
|---|---|---|
| CutFire 100i | 20 mm | 40 mm |
| K200 | 35 mm | 60 mm |
| HiFocus 161i Neo | 30 mm | 50 mm |
| HiFocus 280i Neo | 40 mm | 70 mm |
| HiFocus 360i Neo | 50 mm | 80 mm |
| SmartFocus 130 | 25 mm | 40 mm |
| SmartFocus 170 | 30 mm | 50 mm |
| SmartFocus 200 | 30 mm | 60 mm |
| SmartFocus 300 | 40 mm | 80 mm |
| Q1500 | 30 mm | 60 mm |
| Q3000 | 50 mm | 80 mm |
| Model | Max Piercing | Max Edge Cutting |
|---|---|---|
| UltraCut 130 XT | 25 mm | 40 mm |
| UltraCut 200 XT | 40 mm | 65 mm |
| UltraCut 300 XT | 45 mm | 75 mm |

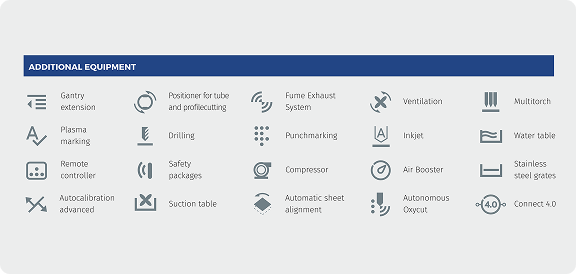

Additional Accessories
- Drilling Unit – Spot drilling for thread preparation
- Fume Extraction System – Dust and smoke removal with high efficiency
- Automatic Pallet Table – Continuous loading and unloading
- Punch Marking System – Permanent marking on sheet metal
- Plasma Marking System – Marking for welding and traceability
- ESR Pipe Cutting System – Pipe processing (Ø50–900 mm)
- Gantry Extension – Extended machining area for large components
Technology Highlights

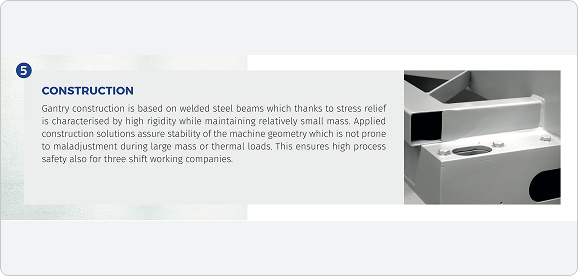

Gantry Construction
- Welded steel structure with stress relief
- High rigidity with low mass design
- Stable performance under thermal and load stress

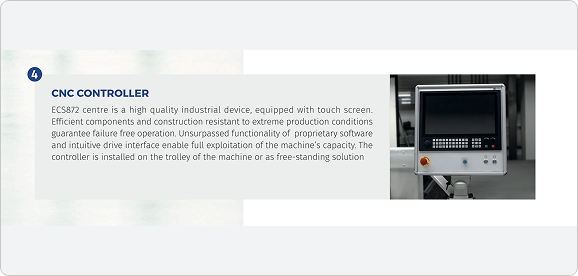

CNC Controller (ECS 872)
- Industrial touchscreen interface
- User-friendly operation
- Reliable performance in harsh environments

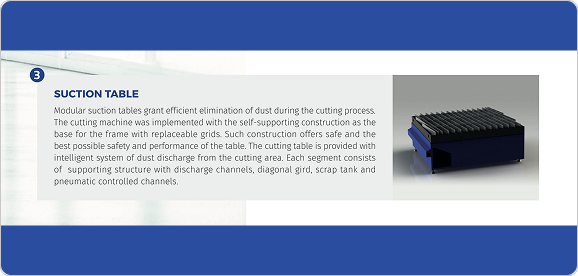

Suction Table System
- Modular segmented design
- Intelligent dust extraction channels
- Improved safety and cutting efficiency

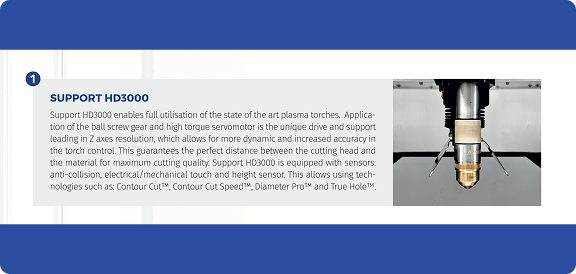

HD3000 Torch Support
- High torque servo-driven Z-axis
- Anti-collision and height sensors
- Supports advanced cutting technologies
Oxygen Cutting Torch
- Automatic ignition and height sensing
- Suitable for thick structural steel cutting
Product Description
Flexible Multi-Material Processing
Supports both plasma and oxy-fuel cutting technologies, enabling processing of thin sheets as well as thick plates up to 100 mm.
Robust Gantry Construction
Built with welded steel beams and stress-relieved structure, the machine ensures high rigidity, thermal stability, and long-term accuracy even under heavy loads.
Advanced CNC Control System
Equipped with an intuitive touchscreen CNC controller, enabling easy operation, real-time monitoring, and optimized cutting performance.
Efficient Dust Extraction System
Modular suction tables with intelligent dust extraction ensure clean operation, improved safety, and better working conditions.

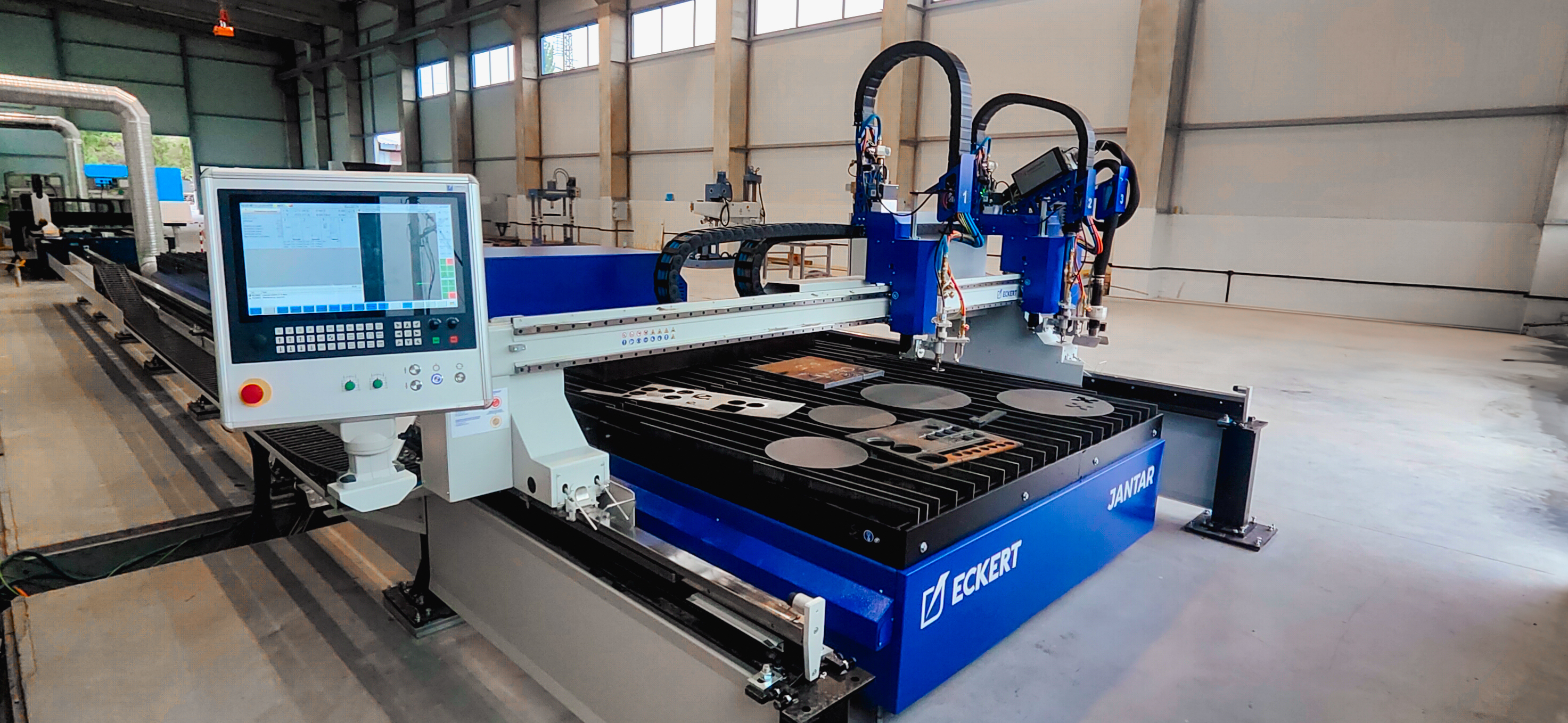

Precision Torch Height Control (HD3000)
Advanced height control system maintains optimal cutting distance, ensuring superior cut quality and process stability.
Oxy-Fuel Cutting Capability
Designed for cutting low-carbon and alloy steels with automatic ignition and height control for efficient thick plate processing.
Frequently Asked Questions
Everything you need to know about the JANTAR SERIES PLASMA
1. What is the Jantar Series cutting machine used for?
The Jantar Series is a high-speed plasma and oxy-fuel cutting machine used for sheet metal, pipes, tubes, and structural profiles in industrial fabrication and engineering applications.
2. What cutting technologies does the Jantar Series support?
The machine supports both plasma cutting for high-speed precision cutting and oxy-fuel cutting for thick plate processing, offering flexibility across different materials and thicknesses.
3. What is the maximum cutting thickness of the Jantar Series?
The machine can process materials up to 100 mm thickness using oxy-fuel cutting, making it suitable for heavy structural steel and thick plate applications.
4. What materials can the Jantar Series cut?
It can cut mild steel, low alloy steel, and other conductive metals using plasma, while oxy-fuel is primarily used for carbon steel and thick structural materials.
5. How do I choose between plasma cutting and oxy-fuel cutting?
- Plasma cutting
Best for thin to medium thickness materials
Mild Steel typically up to 50 mm depending on power source
Faster cutting speed with better edge quality - Oxy-fuel cutting
Best for thick plate cutting
Mild Steel up to 100 mm
Lower operating cost for heavy thickness applications
6. What plasma power sources are compatible with the Jantar Series?
The machine supports leading plasma systems such as Hypertherm, Kjellberg, and Thermal Dynamics, allowing flexibility based on cutting requirements and budget.
7. Can the Jantar Series cut pipes and profiles?
Yes, the machine can be equipped with an optional pipe cutting system, enabling processing of pipes and profiles along with flat sheets in a single setup.
8. Is the Jantar Series suitable for continuous industrial production?
Yes, it is designed for continuous operation with a robust gantry structure, stable motion system, and reliable CNC control for long-term industrial use.
9. What makes the Jantar Series a cost-effective solution?
The combination of plasma and oxy-fuel cutting, modular design, low operating cost, and upgrade flexibility makes it an economical choice for both small and large fabrication units.
10. Why choose the Jantar Series over other cutting machines?
The Jantar Series offers a balance of flexibility, cost efficiency, multi-process capability, and reliable performance, making it one of the most versatile solutions for modern fabrication environments.
