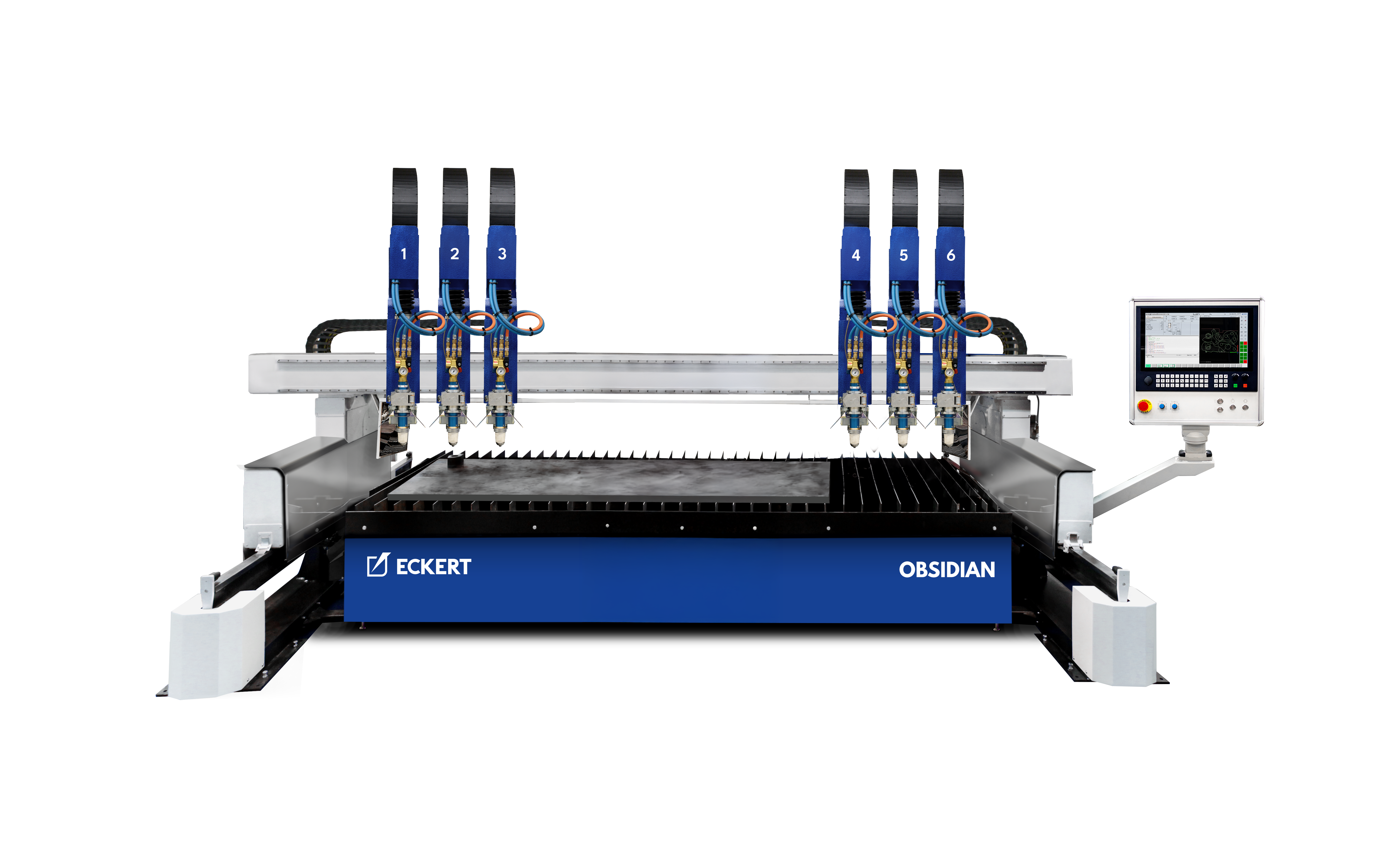

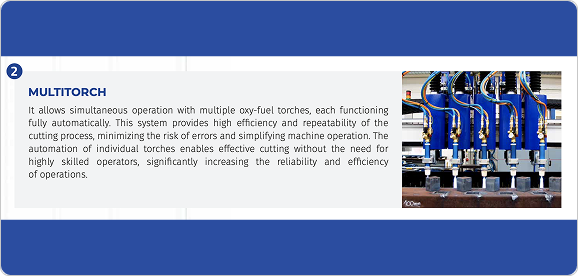

Multi-Torch Cutting System
The advanced multi-torch system enables simultaneous cutting operations, improving productivity and ensuring consistent output across large workpieces.
Oxygen Cutting Machine
OBSIDIAN SERIES OXY-FUEL
Heavy Duty Multi Torch
Multi-torch, Precision & Heavy Duty Performance
Multi-torch, Precision & Heavy Duty Performance
Advanced oxy-fuel cutting solution designed for continuous multi-torch operation, delivering high precision, extreme reliability, and superior performance in heavy-duty fabrication environments.
Product Showcase
Watch our product in action, and product images for better understanding
-

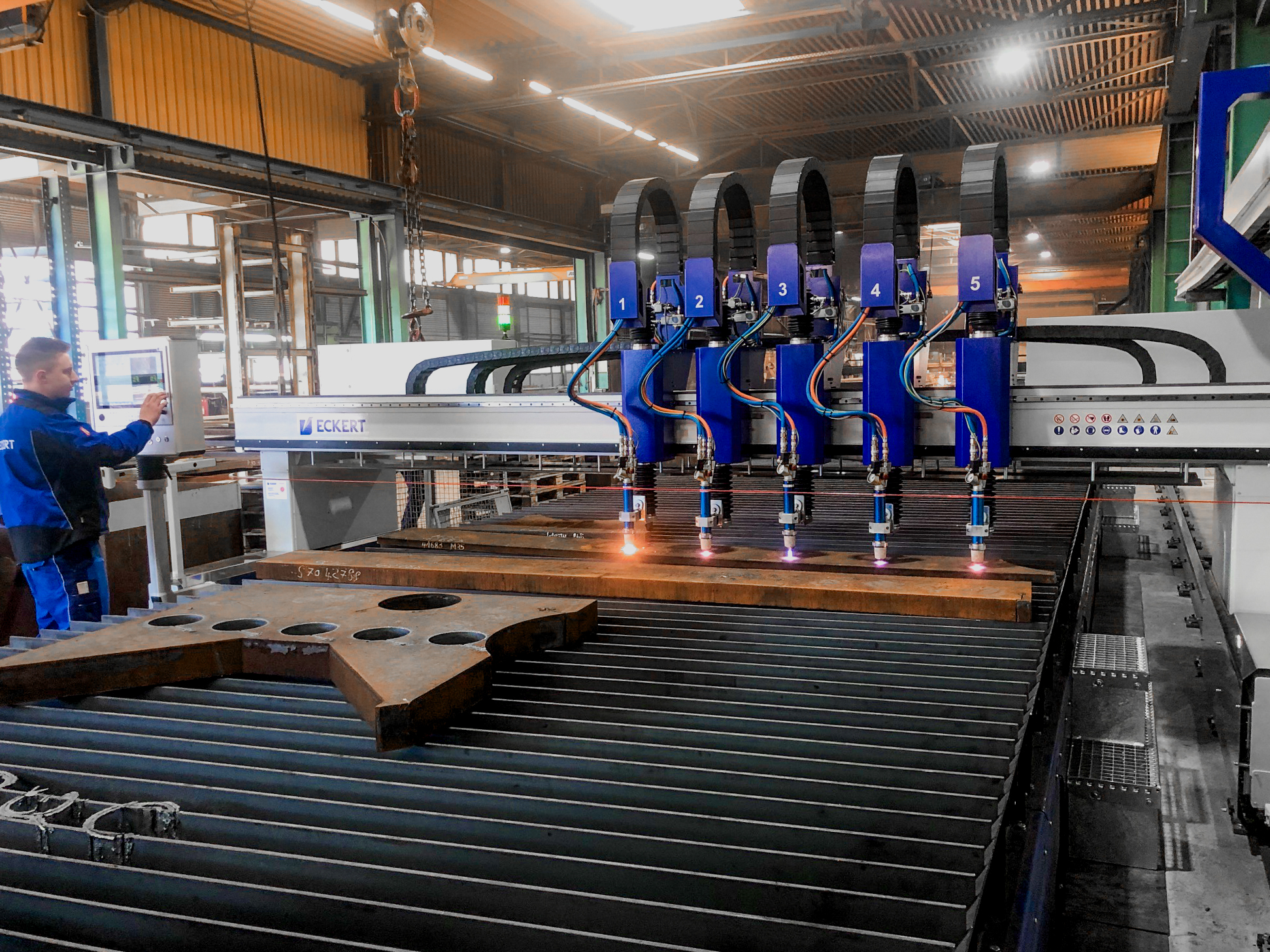

Multi-torch oxy-fuel cutting system for simultaneous operations -

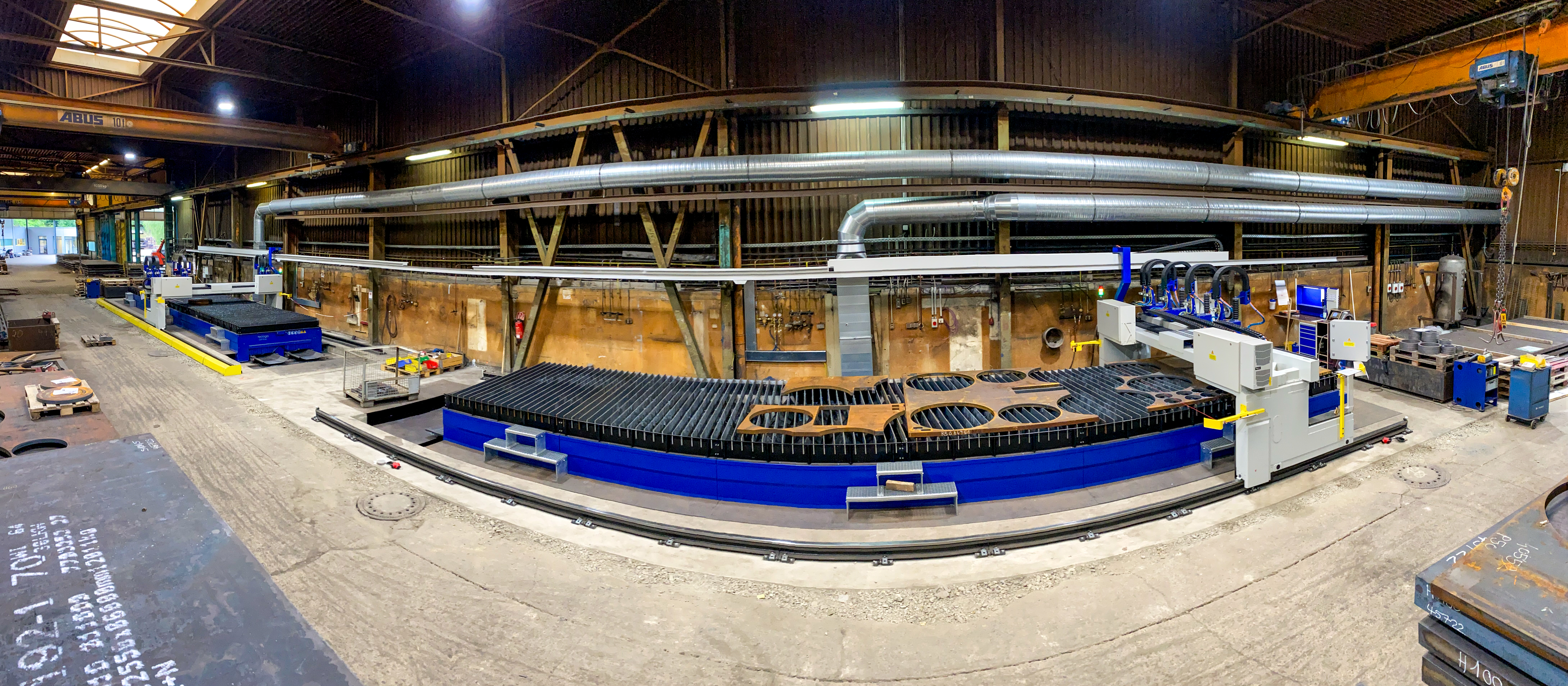

Capable of cutting material thickness up to 300 mm
-
Designed for continuous multi-shift industrial production
-
Adjustable strip cutting with nozzle spacing starting from 40 mm
-
Advanced autonomous oxy-fuel cutting system
-
High precision and repeatable cutting performance
-
Robust heavy-duty gantry construction
-
Thermal protection system for high-temperature operations
-
Industry 4.0 ready with smart integration capability
-
High safety standards for operator and machine protection
Key Features
-
Heavy structural steel fabrication -
Shipbuilding and offshore industries
-
Steel service centers and plate processing
-
Pressure vessel and boiler manufacturing
-
Mining and heavy equipment production
-
Infrastructure and construction industries
-
Defense and armor plate cutting
-
Industrial fabrication with multi-torch requirements
Key Applications
Material Thickness & Laser Power Chart
Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.
Overview
The Obsidian CNC Oxy-Fuel Cutting Machine is engineered for heavy industrial applications requiring high-performance multi-torch cutting and maximum operational reliability.
Designed specifically for structural steel and thick material processing, the machine delivers consistent cutting quality even under extreme thermal loads.
With its multi-torch system, autonomous cutting capabilities, and robust construction, Obsidian ensures efficient large-scale production with reduced operator dependency and enhanced productivity.
Designed specifically for structural steel and thick material processing, the machine delivers consistent cutting quality even under extreme thermal loads.
With its multi-torch system, autonomous cutting capabilities, and robust construction, Obsidian ensures efficient large-scale production with reduced operator dependency and enhanced productivity.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Obsidian |
| Drives | Servo AC |
| Cutting Width | 2000 – 12000 mm |
| Max Cutting Length | From 1500 mm (extendable) |
| Positioning Speed | 25000 mm/min |
| Cutting Thickness | Up to 300 mm |
| Cutting Quality | DIN-EN ISO 9013 |
| Positioning Accuracy | DIN-EN 28206 |
Technology Highlights
⚠️ No Data Found
Product Description

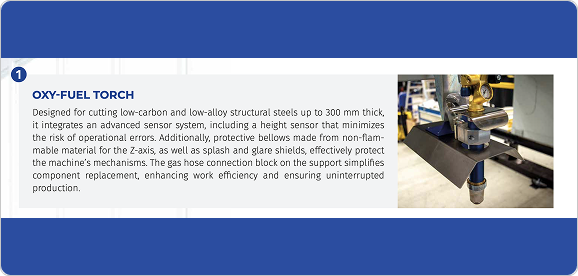

Autonomous Oxy-Fuel Cutting
Equipped with intelligent sensors, automatic ignition, and height control, the system simplifies operation while enhancing precision and cutting efficiency.

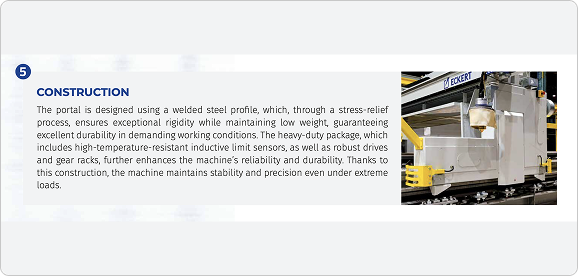

Heavy-Duty Industrial Construction
The machine features a reinforced welded steel gantry designed to withstand extreme industrial loads while maintaining structural stability and accuracy.

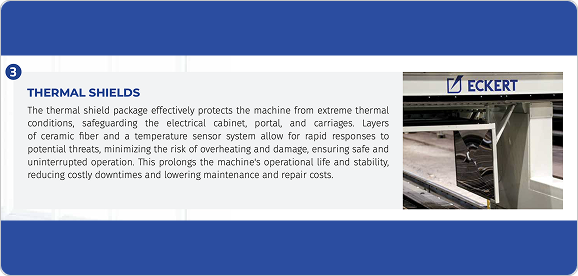

Thermal Protection & Cooling System
Integrated heat shields and an advanced temperature management system protect critical components and ensure stable performance even under continuous high-temperature operation.

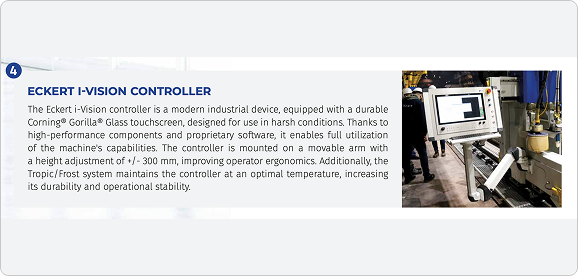

Intelligent CNC Control
The Eckert i-Vision controller offers a modern touchscreen interface, intuitive operation, and seamless integration with ERP and MES systems for smart manufacturing environments.
Strip Cutting Capability
Adjustable nozzle spacing allows efficient strip cutting operations, improving material utilization and production flexibility.
Frequently Asked Questions
Everything you need to know about the OBSIDIAN SERIES OXY-FUEL
1. What is the Obsidian CNC Oxy Fuel Cutting Machine used for
The Obsidian CNC Oxy Fuel Cutting Machine is designed for heavy duty industrial applications such as structural steel fabrication, shipbuilding, pressure vessels, and large scale plate processing where thick material cutting is required.
2. What makes the Obsidian machine different from standard oxy fuel cutting machines
Obsidian features a multi torch cutting system, autonomous operation, and heavy duty construction, allowing simultaneous cutting, higher productivity, and consistent performance in large scale industrial environments.
3. What is the maximum thickness Obsidian can cut
The machine can cut material thickness up to 300 mm, making it suitable for extremely thick plates used in heavy engineering and infrastructure projects.
4. What materials can be cut using the Obsidian machine
Obsidian is primarily used for cutting low carbon steel and alloy steel using oxy fuel technology, especially in applications involving thick structural materials.
5. How does the multi torch system improve productivity
The multi torch system allows multiple cuts to be performed simultaneously on the same plate, significantly increasing output, reducing cutting time, and improving overall production efficiency.
6. What is strip cutting and how does Obsidian support it
Strip cutting is the process of cutting multiple parallel strips from a single plate. Obsidian supports adjustable nozzle spacing starting from 40 mm, enabling efficient strip cutting and better material utilization.
7. Can Obsidian handle continuous industrial production
Yes, the machine is designed for continuous multi shift operation, ensuring reliability, durability, and consistent performance in high demand production environments.
8. How does Obsidian maintain accuracy under high temperature conditions
The machine uses a robust gantry structure along with a thermal protection system and temperature management features to maintain cutting accuracy even during prolonged high temperature operations.
9. Does Obsidian support automation and smart manufacturing
Yes, the machine is Industry 4.0 ready with integration capabilities for ERP and MES systems, enabling real time monitoring, data tracking, and improved production control.
10. Is Obsidian a cost effective solution for large scale fabrication
Yes, with its multi torch capability, reduced manual intervention, high productivity, and efficient material utilization, Obsidian delivers strong return on investment for heavy industrial users.
