Cold Cutting Technology
Waterjet cutting eliminates heat-affected zones, ensuring material integrity and high-quality finishes without deformation.
Water Jet Cutting Machine
OPAL SERIES WATERJET
High Series WaterJet
Wide Range of Materials & High Precision
Wide Range of Materials & High Precision
Versatile waterjet cutting solution designed for smooth, high-quality cutting without heat-affected zones, ideal for a wide range of materials and industrial applications.
Product Showcase
Watch our product in action, and product images for better understanding
-
High precision cold cutting with no heat-affected zone -
Capable of cutting materials up to 250 mm thickness
-
Supports both pure water and abrasive cutting
-
Multi-head cutting capability (up to 4 heads)
-
No dust or thermal distortion during cutting
-
Smooth edge finish with minimal post-processing
-
Customizable high-pressure pump configurations
-
Stable gantry structure for consistent performance
-
Advanced control system with user-friendly interface
-
Optional 3D cutting capability with PRO-X 3D head
Key Features
-
Stone and marble cutting -
Glass and ceramic processing
-
Metal and alloy cutting
-
Plastic and composite material processing
-
Wood and decorative panel cutting
-
Aerospace and automotive components
-
Architectural and interior design elements
-
Industrial multi-material fabrication
Key Applications
Material Thickness & Laser Power Chart
Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.
Overview

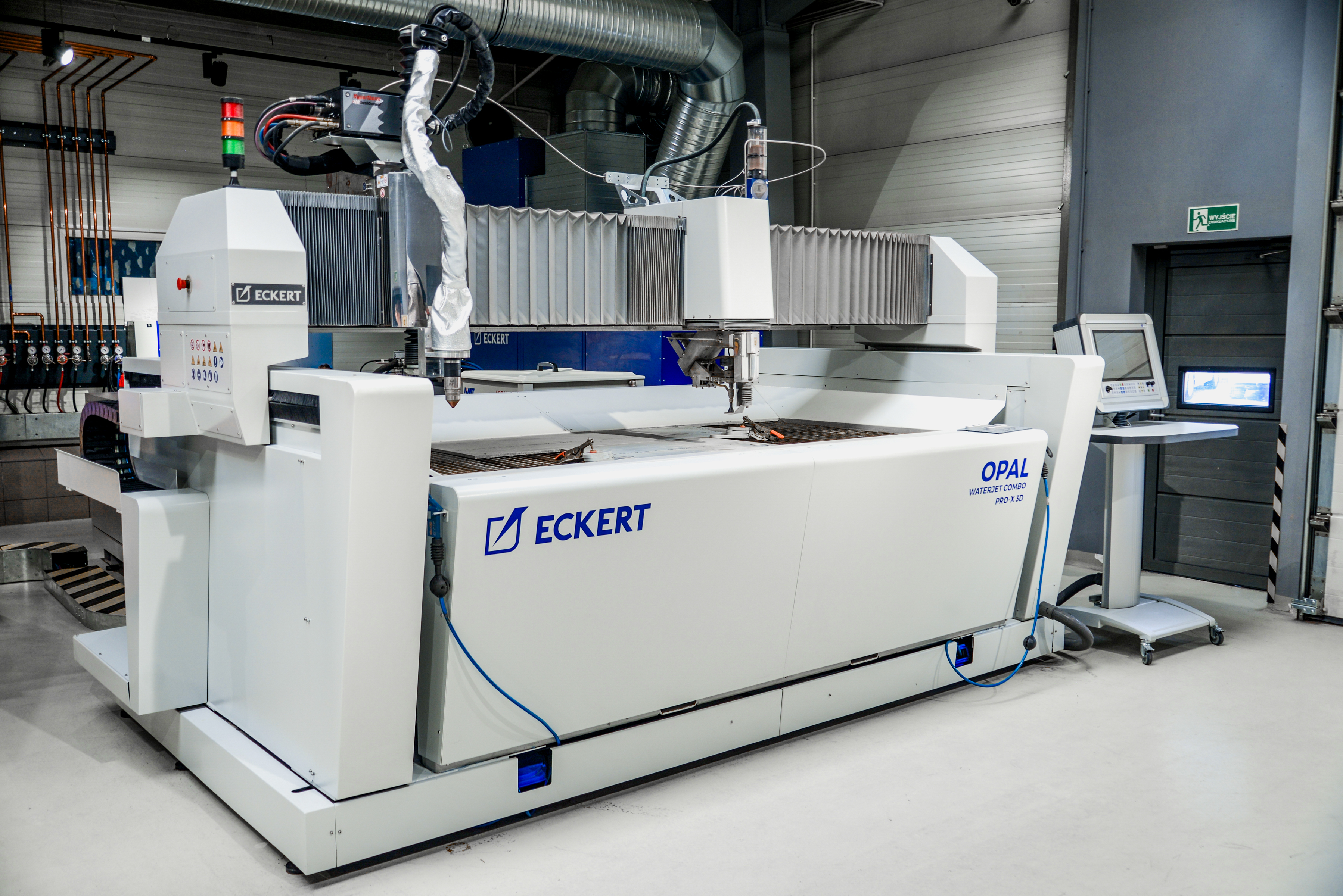

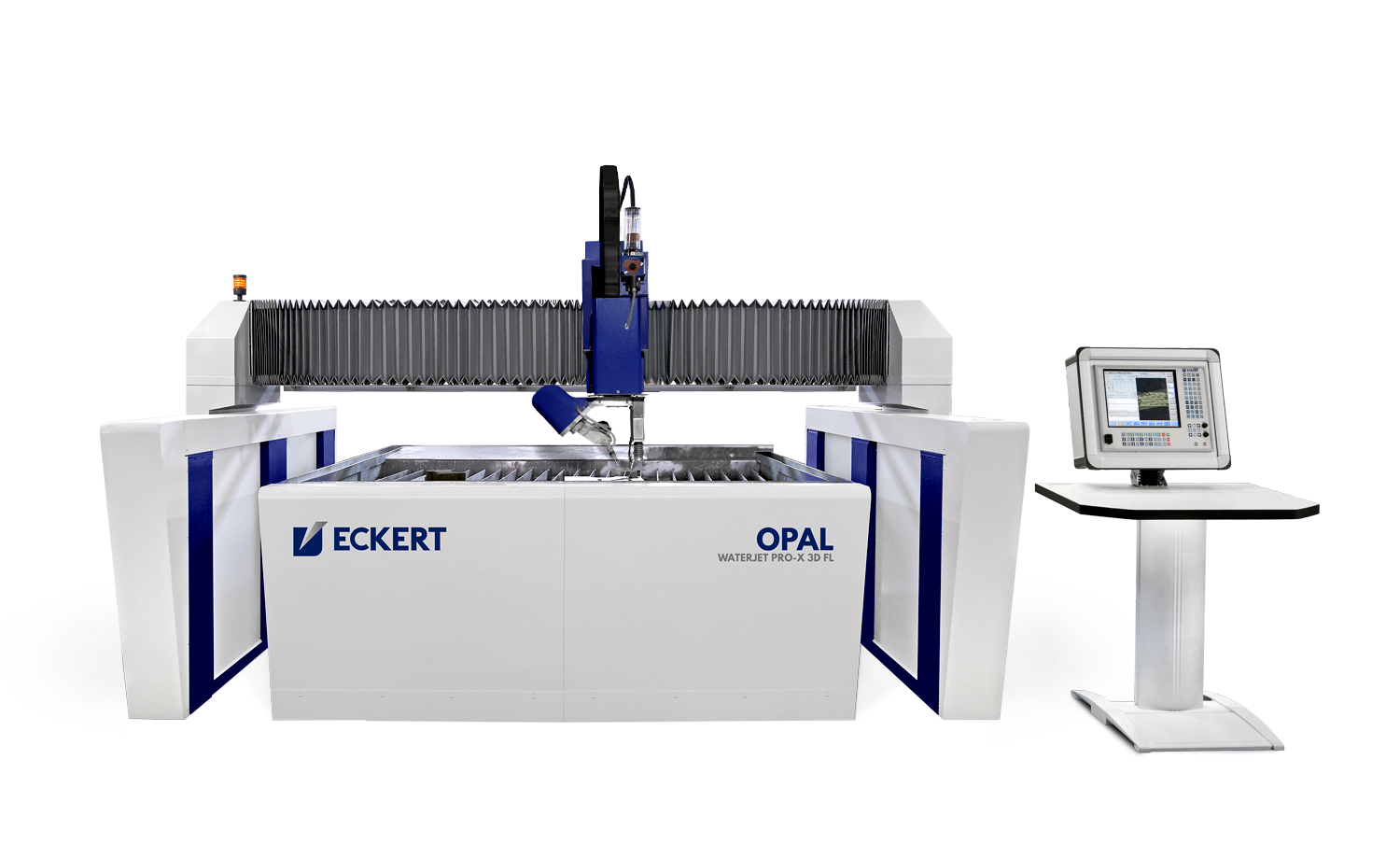

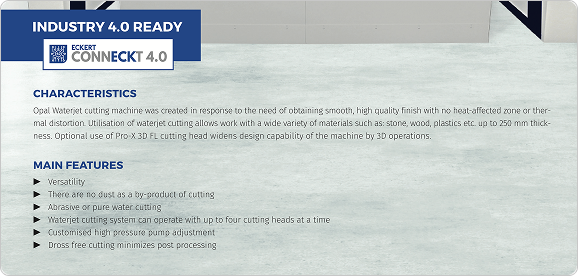

The Opal Waterjet Cutting Machine is designed for industries requiring high-precision cutting without any thermal impact on the material.
Utilizing advanced waterjet technology, the machine delivers clean, smooth, and accurate cuts across a wide range of materials, including metals, stone, glass, plastics, rubber, and composites.
Its ability to cut without generating heat-affected zones (HAZ) eliminates the risk of material distortion, hardening, or structural changes, making it ideal for applications where dimensional accuracy, material integrity, and superior edge quality are critical.
Utilizing advanced waterjet technology, the machine delivers clean, smooth, and accurate cuts across a wide range of materials, including metals, stone, glass, plastics, rubber, and composites.
Its ability to cut without generating heat-affected zones (HAZ) eliminates the risk of material distortion, hardening, or structural changes, making it ideal for applications where dimensional accuracy, material integrity, and superior edge quality are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Opal Waterjet |
| Drives | Servo AC |
| Cutting Width | 1000 – 6000 mm |
| Max Cutting Length | 1000 – 12000 mm |
| Cutting Thickness (2D) | 0.5 – 250 mm |
| Cutting Thickness (3D) | 0.5 – 150 mm |
| Positioning Speed | 25000 mm/min |
| Positioning Accuracy | ±0.025 mm |
BFT
| Model | Power (kW) | Max Flow (l/min) | Pressure (bar) |
|---|---|---|---|
| ECOTRON 40.22 | 22 | 2.3 | 4000 |
| ECOTRON 40.30 | 30 | 3.1 | 4000 |
| ECOTRON 40.37 | 37 | 3.8 | 4000 |
| SERVOTRON 40.37 | 37 | 3.8 | 4000 |
| SERVOTRON 40.45 | 45 | 4.6 | 4000 |
| Model | Power (kW) | Max Flow (l/min) | Pressure (bar) |
|---|---|---|---|
| TL-I 30 | 22 | 3.1 | 3800 |
| NL-I 40 | 29 | 2.7 | 3800 |
| JL-I 50 | 37 | 3.8 | 3800 |
| SL-VI 30 PLUS | 22 | 2.6 | 4136 |
| SL-VI 50 STD | 37 | 4.3 | 3800 |
| SL-VI 60 PRO-III | 45 | 6.0 | 6200 |
| Classic V-Drive | 37 | 3.8 | 3800 |
| ARA | 37 | 3.8 | 3800 |
| Model | Power (kW) | Max Flow (l/min) | Pressure (bar) |
|---|---|---|---|
| HPS 4022 | 22 | 2.3 | 3800 |
| HPS 4037 | 37 | 3.8 | 3800 |
| HPD 4055 | 55 | 5.7 | 3800 |
| HPD 4075 | 75 | 7.6 | 3800 |
| HPS 6045 / HPD 6045 | 45 | 2.8 | 6000 |
| HPD 6090 | 90 | 5.4 | 6000 |
Technology Highlights
⚠️ No Data Found
Product Description
Multi-Material Processing Capability
The system can process a wide range of materials including metals, stone, plastics, and composites, making it highly versatile for various industries.
Multi-Head Cutting System
Supports up to four cutting heads, increasing productivity and enabling simultaneous processing of multiple parts.

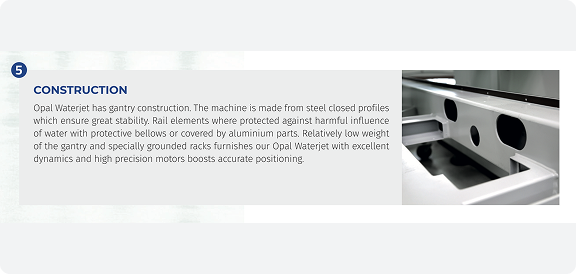

Robust Gantry Construction
The machine features a strong steel gantry structure with protected guideways, ensuring long-term durability and stable operation.

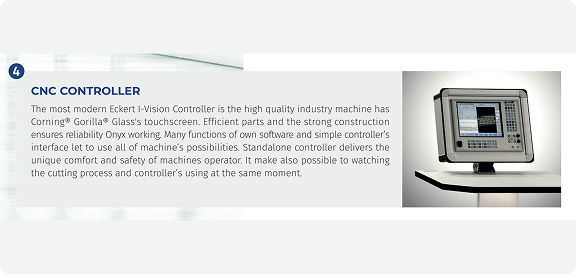

Advanced Control System
Equipped with a modern industrial controller featuring a durable touchscreen interface for easy operation and monitoring.

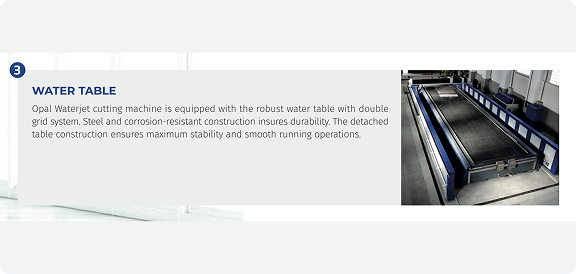

Water Table System
A robust water table with double grid structure ensures stability, durability, and efficient cutting operations.

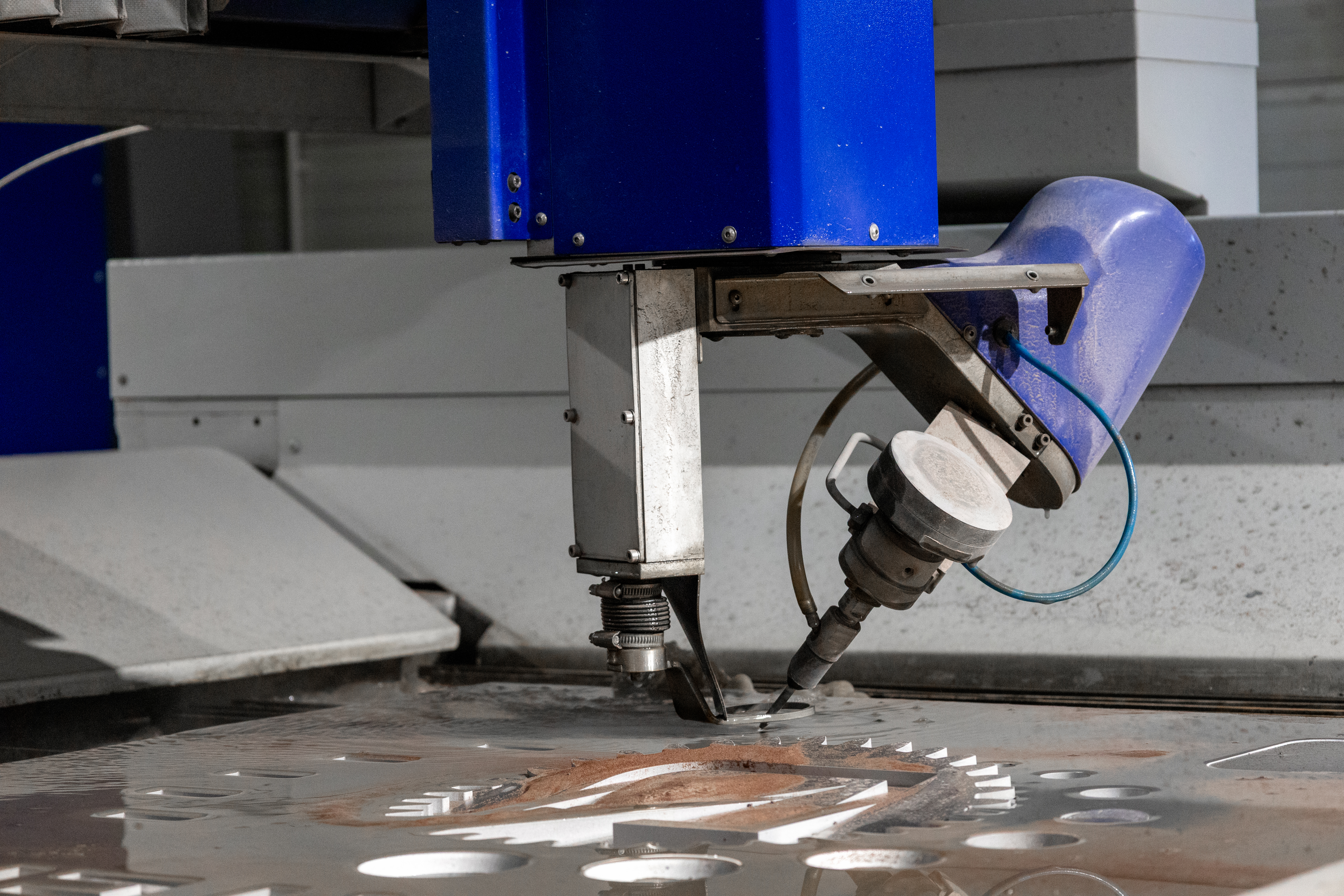

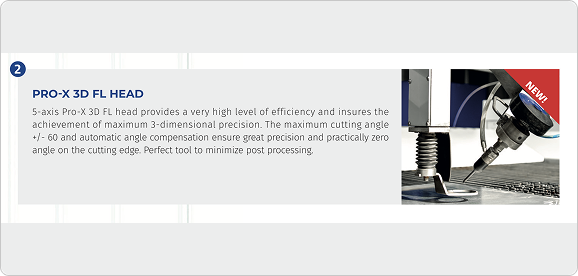

Optional 3D Cutting Capability
With the PRO-X 3D cutting head, the machine enables advanced 3D cutting applications, expanding design flexibility.
Frequently Asked Questions
Everything you need to know about the OPAL SERIES WATERJET
1. What is the Opal Waterjet Cutting Machine used for
The Opal Waterjet Cutting Machine is used for high precision cutting of multiple materials such as metal, stone, glass, plastics, and composites without heat damage, making it ideal for industries requiring clean and accurate finishes.
2. What makes waterjet cutting different from laser or plasma cutting
Waterjet cutting is a cold cutting process that does not generate heat, ensuring no thermal distortion, no heat affected zone, and better material integrity compared to laser or plasma cutting.
3. What is the maximum thickness the Opal Waterjet can cut
The machine can cut materials from as thin as 0.5 mm up to 250 mm in 2D cutting and up to 150 mm in 3D cutting applications.
4. What materials can be cut using the Opal Waterjet machine
The machine can process a wide range of materials including metals, stainless steel, aluminum, stone, marble, glass, ceramics, plastics, rubber, composites, and wood.
5. Does waterjet cutting require different cutting methods for different materials
Yes, the system supports pure water cutting for soft materials like rubber and foam, and abrasive waterjet cutting for hard materials like metals, stone, and glass.
6. How accurate is the Opal Waterjet Cutting Machine
The machine offers high precision cutting with positioning accuracy up to ±0.025 mm, ensuring clean edges and minimal need for secondary finishing.
7. Can the Opal Waterjet machine handle high production requirements
Yes, with multi-head cutting capability of up to 4 heads, the machine can process multiple parts simultaneously, improving productivity and reducing cycle time.
8. Does waterjet cutting produce dust or deformation
No, waterjet cutting produces no dust, no heat distortion, and no micro cracks, making it ideal for sensitive materials and high-quality applications.
9. Can the Opal Waterjet perform 3D cutting applications
Yes, with the optional PRO X 3D cutting head, the machine can perform complex 3D cutting and angled profiles, expanding its application range.
10. Is the Opal Waterjet suitable for industries requiring high surface finish
Yes, the machine delivers smooth edge quality with minimal post processing, making it ideal for industries like architecture, aerospace, automotive, and decorative fabrication.
