High-Speed Intelligent Bending
The TBC Series delivers ultra-fast bending cycles, completing each bend in as little as 0.2 seconds, dramatically increasing throughput without compromising quality.

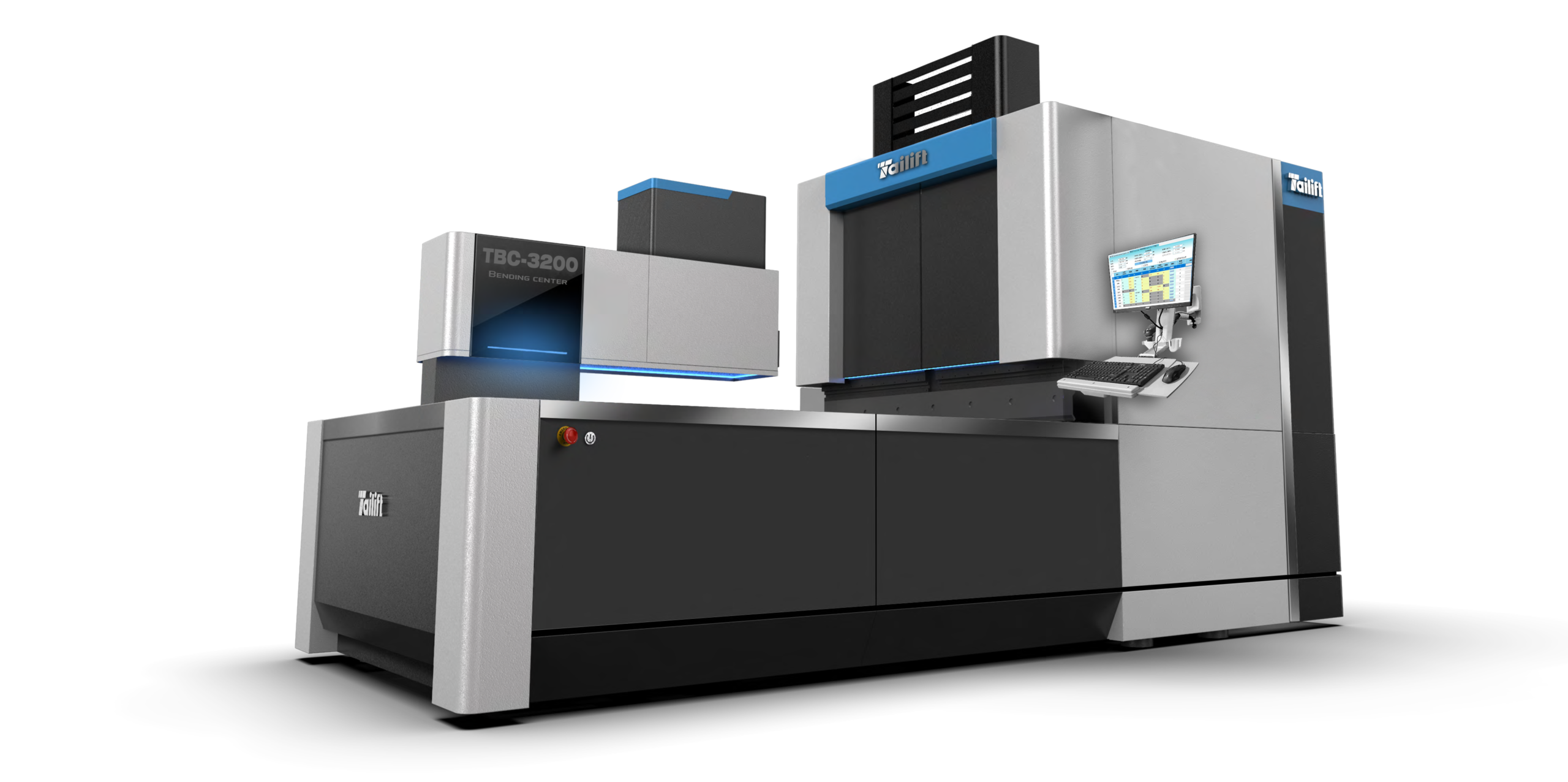

Panel Bender Machine
TBC SERIES PANEL BENDER
Advanced 13 Axis Coordinated
Servo Driven Multilateral Fully Automated
Servo Driven Multilateral Fully Automated
High-speed, servo-driven multilateral bending system designed for precision sheet metal fabrication. The TBC Series enables fully automated, mold-free forming of complex geometries with unmatched efficiency, accuracy, and flexibility.
Product Showcase
Watch our product in action, and product images for better understanding
-
Ultra-fast bending speed – as quick as 0.2 sec per bend -
High precision forming with ±0.01 mm accuracy
-

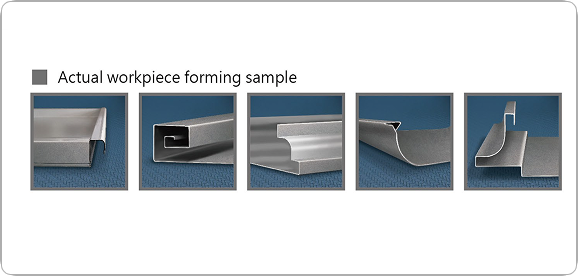

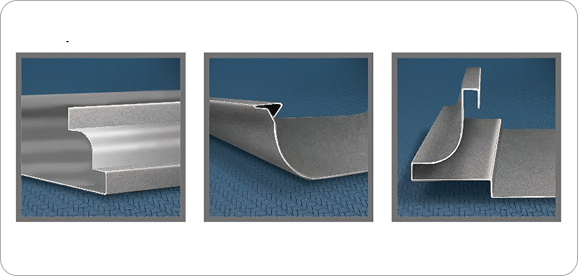

Mold-free bending technology for complex shapes on demand
-
Advanced 13-axis coordinated motion system
-
Wide material compatibility (SS, MS, Aluminum)
-
Intelligent TaiLift control software for smooth operation
-
Real-time monitoring with cloud-based management system
-
Low power consumption with high-speed output
-
Minimal maintenance design for reduced operational cost
-
Fully automated loading and unloading compatibility
-
Quiet operation (~40 dB noise level)
-
Designed for continuous industrial production
Key Features
-
Sheet metal fabrication industries -
Electrical enclosures and cabinets
-
HVAC duct manufacturing
-
Automotive component production
-
Elevator panel manufacturing
-
Furniture and modular systems
-
Kitchen equipment fabrication
-
Industrial enclosures and housings
-
Precision metal forming applications
Key Applications
Material Thickness & Laser Power Chart
Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.
Overview
The TBC Series Intelligent Multilateral Bending Machine represents a breakthrough in sheet metal forming technology.
By eliminating the need for traditional molds, it enables manufacturers to produce complex geometries with greater flexibility and reduced setup time.
With its multi-axis synchronized motion, high-speed servo system, and intelligent control software, the TBC Series significantly improves production efficiency while maintaining exceptional accuracy. It is ideal for modern fabrication environments that demand speed, customization, and cost efficiency.
By eliminating the need for traditional molds, it enables manufacturers to produce complex geometries with greater flexibility and reduced setup time.
With its multi-axis synchronized motion, high-speed servo system, and intelligent control software, the TBC Series significantly improves production efficiency while maintaining exceptional accuracy. It is ideal for modern fabrication environments that demand speed, customization, and cost efficiency.
Technical Specifications
Machine Models
Material Capability
System Specifications<
| Specification | TBC-1400 | TBC-2000 | TBC-2500 |
|---|---|---|---|
| Minimum Accuracy | ±0.01 mm | ±0.01 mm | ±0.01 mm |
| Fastest Bending Speed | 0.2 sec/bend | 0.5 sec/bend | 0.5 sec/bend |
| Maximum Bending Width | 1400 mm | 2000 mm | 2500 mm |
| Maximum Bending Size | 1400 × 1250 mm | 2000 × 1500 mm | 2500 × 1500 mm |
| Bending Height | 170 mm | 170 mm | 170 mm |
| Peak Power | 16 kW | 23 kW | 25 kW |
| Average Power | 1.5 kW | 2.2 kW | 2.5 kW |
| Noise Level | 40 dB | 40 dB | 40 dB |
| Dimensions (L×W×H) | 330 × 190 × 280 cm | 400 × 255 × 310 cm | 400 × 295 × 310 cm |
| Total Weight | 10 tons | 18 tons | 20 tons |
| Parameter | Specification |
|---|---|
| Maximum Thickness | SS 1.0 mm / MS 1.5 mm / Aluminum 1.6 mm |
| Minimum Thickness | 0.35 mm |
| Minimum Inner Size (Four-Side Forming) | 110 × 280 mm |
| Minimum Inner Size (Two-Side Forming) | 110 mm |
| Parameter | Value |
|---|---|
| Number of Axes | 13 |
| Operating System | Windows 7 and above |
| Control Type | CNC Servo System |
Technology Highlights
Intelligent Bending System
- Multi-axis synchronized control
- Real-time adaptive bending correction
- High repeatability and precision
TaiLift Software Platform
- Easy programming interface
- Production simulation and optimization
- Error reduction and workflow efficiency
Cloud-Based Management
- Remote monitoring and diagnostics
- Predictive maintenance support
- Data-driven production insights
Servo-Driven Motion Control
- High-speed, high-accuracy positioning
- Smooth and stable operation
- Reduced mechanical wear
Product Description
Mold-Free Flexible Production
Unlike traditional press brake systems, the TBC machine eliminates tooling requirements, allowing instant switching between different part designs and enabling true mass customization.
13-Axis Coordinated Motion System
The advanced multi-axis system ensures smooth, synchronized movements for precise and consistent bending, even for complex multi-side geometries.
User-Friendly Control Software
Powered by TaiLift’s proprietary software, the system offers an intuitive interface, simplified programming, and efficient production management.
Cloud-Based Smart Monitoring
Real-time machine monitoring, diagnostics, and maintenance support help reduce downtime and improve operational efficiency.
Energy-Efficient & Low Maintenance
With optimized power consumption and a simplified mechanical structure, the TBC Series reduces both energy costs and maintenance requirements.
Frequently Asked Questions
Everything you need to know about the TBC SERIES PANEL BENDER
1. What is the TBC Series Multilateral Bending Machine used for?
The TBC Series is used for high-speed, precision sheet metal forming. It enables automated bending of complex geometries without the need for traditional molds, making it ideal for modern fabrication industries.
2. What makes the TBC Series different from traditional press brakes?
Unlike conventional press brakes, the TBC Series uses mold-free bending technology, allowing instant design changes, faster production, and elimination of tooling costs.
3. What materials can the TBC Series process?
The machine supports a wide range of materials including:
- Stainless Steel (SS)
- Mild Steel (MS)
- Aluminum
4. What is the maximum thickness the TBC Series can handle?
Material thickness capacity includes:
- Stainless Steel: up to 1.0 mm
- Mild Steel: up to 1.5 mm
- Aluminum: up to 1.6 mm
5. How fast is the bending process?
The TBC Series can achieve bending speeds as fast as 0.2 seconds per bend, making it one of the fastest bending solutions available for sheet metal fabrication.
6. What level of accuracy does the machine offer?
The machine delivers high precision with ±0.01 mm accuracy, ensuring consistent and repeatable bending results even for complex parts.
7. Does the machine require molds or tooling?
No. The TBC Series operates with mold-free technology, eliminating tooling costs and enabling flexible production with quick design changes.
8. Is the TBC Series suitable for mass production?
Yes. With its high-speed operation, automation compatibility, and minimal setup time, it is ideal for both mass production and customized manufacturing.
9. What kind of automation does the machine support?
The machine supports fully automated loading and unloading systems, enabling seamless integration into smart factory and Industry 4.0 environments.
10. What control system does the TBC Series use?
It uses TaiLift intelligent control software with cloud-based monitoring, allowing real-time tracking, diagnostics, and production optimization.
11. How energy-efficient is the TBC Series?
The machine is designed for low power consumption, with significantly lower average power usage compared to traditional bending systems.
12. What industries benefit most from the TBC Series?
Industries include:
- Electrical enclosures and cabinets
- HVAC duct manufacturing
- Automotive components
- Furniture and modular systems
- Kitchen equipment
- General precision sheet metal fabrication
13. Is the machine noisy during operation?
No. The TBC Series operates at a low noise level of approximately 40 dB, making it suitable for modern production environments.
14. What is the advantage of the 13-axis system?
The 13-axis coordinated motion system enables multi-side bending, complex geometries, and high precision, which is not possible with conventional machines.
15. Does the TBC Series reduce production costs?
Yes. It reduces costs by:
- Eliminating tooling expenses
- Reducing setup time
- Minimizing material handling
- Lowering energy consumption
- Reducing maintenance requirements
