Combo Cutting Machine
TITAN DRILLCUT SERIES COMBO
Plasma, Oxy Fuel & Drilling
ALL IN ONE heavy-duty sheet and plate
High-performance automated machining center combining plasma cutting, oxy-fuel cutting, and precision drilling for heavy-duty industrial sheet and plate processing.

Product Showcase

Watch our product in action, and product images for better understanding

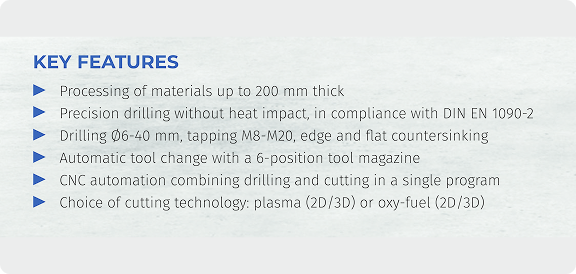

    Key Features

  • Multi-process system for plasma cutting, oxy-fuel cutting, and drilling
  • High precision drilling without heat-affected zones
  • Material processing capability up to 200–300 mm thickness
  • Integrated VarioDrill unit for drilling, tapping, and countersinking
  • Automatic tool changer with 6-position tool magazine
  • CNC automation for cutting and drilling in a single program
  • 3D cutting capability with bevel cutting support
  • Compatible with high-performance plasma sources up to 800 A
  • Designed for 24/7 continuous industrial operation
  • User-friendly PC-based CNC control system
  • High safety, wiring, and environmental compliance standards

    Key Applications

  • Heavy structural steel fabrication
  • Infrastructure and construction projects
  • Shipbuilding and offshore components
  • Oil and gas pipeline processing
  • Industrial machinery manufacturing
  • Steel service centers
  • Bridge and large structure fabrication
  • Thick plate cutting and hole processing

Material Thickness & Laser Power Chart

Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.

View Full Chart ->
×

Material Thickness & Laser Power Chart

Laser Power 3 kW 4 kW 6 kW 8 kW 10 kW 12 kW 15 kW 20 kW 30 kW
Cutting Thickness on Metals mm (inch)
Mild Steel (MS) (O₂) 20 (3/4") 22 (7/8") 25 (1")* 28 (9/8")* 30 (19/16")* 40 (25/16")* 45 (7/4")* 50 (31/16")* 60 (19/8")*
Mild Steel (MS) (N₂ / Air) 6 (1/4") 6 (1/4") 8 (5/16") 10 (3/8") 12 (1/2") 12 (1/2") 16 (5/8") 20 (13/16") 25 (1")*
Stainless Steel (SS) (O₂) 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8")* 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8")
Stainless Steel (SS) (N₂ / Air) 8 (5/16") 10 (3/8") 16 (5/8")* 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")* 40 (25/16")*
Aluminum (AL) (N₂) 8 (5/16") 10 (3/8") 16 (5/8")* 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")* 40 (25/16")*
Brass (Br) (N₂) 6 (1/4") 8 (5/16") 12 (1/2") 16 (5/8") 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")*
Copper (Cu) (O₂) 5 (3/16") 6 (1/4") 8 (5/16") 10 (3/8") 12 (1/2") 16 (5/8") 18 (11/16") 20 (13/16") 22 (7/8")
Galvanized Iron (GI) (N₂ / Air) 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8")

Overview

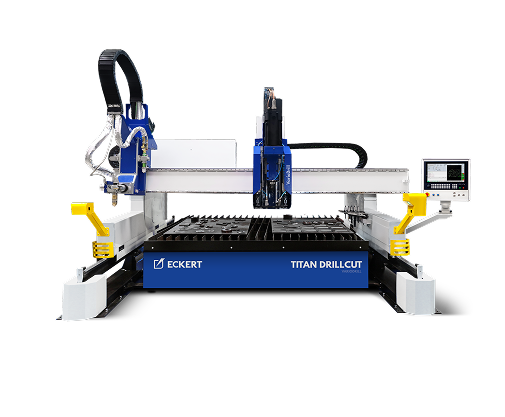

The Titan DrillCut Series is an advanced sheet metal and plate processing center that integrates thermal cutting and mechanical machining into a single system.

By combining plasma cutting, oxy-fuel cutting, and precision drilling, the machine enables complete component processing without secondary operations.

Its heavy-duty construction, intelligent CNC control, and automated tool handling make it ideal for high-demand industrial environments requiring accuracy, efficiency, and reliability.

Technical Specifications

Cutting Machine Specifications
Specification Details
Model Titan DrillCut
Drives Servo AC
Cutting Width 2000 – 7000 mm
Cutting Length From 1500 mm (customizable)
Positioning Speed 25,000 mm/min
Cutting Thickness Up to 300 mm
Cutting Quality EN ISO 9013
Positioning Accuracy As per EN 28206
Working Table Height 740 – 760 mm
Drilling Specifications
Specification Details
Drill Type VarioDrill
Drill Range Ø6 – Ø40 mm
Tapping Range M4 – M20
Tool Magazine 6 Tools
Tool Holder SK40 / ISO 40
Tool Calibration Automatic
Motor Power 9.3 kW
Plasma Power Compatibility (Hypertherm)
Model Max Piercing Max Edge Cutting
Powermax 45 SYNC 12 mm 29 mm
Powermax 65 SYNC 16 mm 32 mm
Powermax 85 SYNC 20 mm 38 mm
Powermax 105 SYNC 22 mm 50 mm
Powermax 125 25 mm 57 mm
MaxPRO 200 32 mm 75 mm
XPR 170 40 mm 60 mm
XPR 300 50 mm 80 mm
XPR 460 64 mm 102 mm
HPR 400 XD 50 mm 80 mm
HPR 800 XD 50 mm 80 mm
Plasma Power Compatibility (Kjellberg)
Model Max Piercing Max Edge Cutting
CutFire 100i 20 mm 40 mm
K200 35 mm 60 mm
HiFocus 161i Neo 30 mm 50 mm
HiFocus 280i Neo 40 mm 70 mm
HiFocus 360i Neo 50 mm 80 mm
HiFocus 440i Neo 50 mm 120 mm
HiFocus 600i Neo 80 mm 160 mm
SmartFocus 130 25 mm 40 mm
SmartFocus 170 30 mm 50 mm
SmartFocus 200 30 mm 60 mm
SmartFocus 300 40 mm 80 mm
SmartFocus 400 50 mm 100 mm
Q1500 30 mm 60 mm
Q3000 50 mm 80 mm
Q4500 50 mm 120 mm

Technology Highlights

VarioDrill Support System

  • Automatic calibration and tool wear monitoring
  • Pneumatic clamping for vibration-free machining
  • Incremental encoders for precise positioning
  • Chip removal and safety protection system
Automatic Tool Changer

  • 6-tool magazine with intelligent switching
  • Real-time adaptation to machining process
  • Automatic drilling, tapping, and countersinking
Dual Flex 3D Head

  • Plasma and oxy-fuel cutting in one system
  •  ±52° angle cutting capability
  • Suitable for sheets, pipes, and profiles
HD3000 Support System

  • High torque servo-driven Z-axis
  • Anti-collision and height sensing system
  • Advanced cutting technologies support
Oxygen Cutting Torch

  • Ideal for low-carbon and alloy steels
  • Automatic ignition and height control
  • Wide thickness cutting capability

Product Description

Integrated Cutting & Machining System

The DrillCut machine combines plasma and oxy-fuel cutting with advanced drilling capabilities, enabling fully automated processing of components in a single setup.

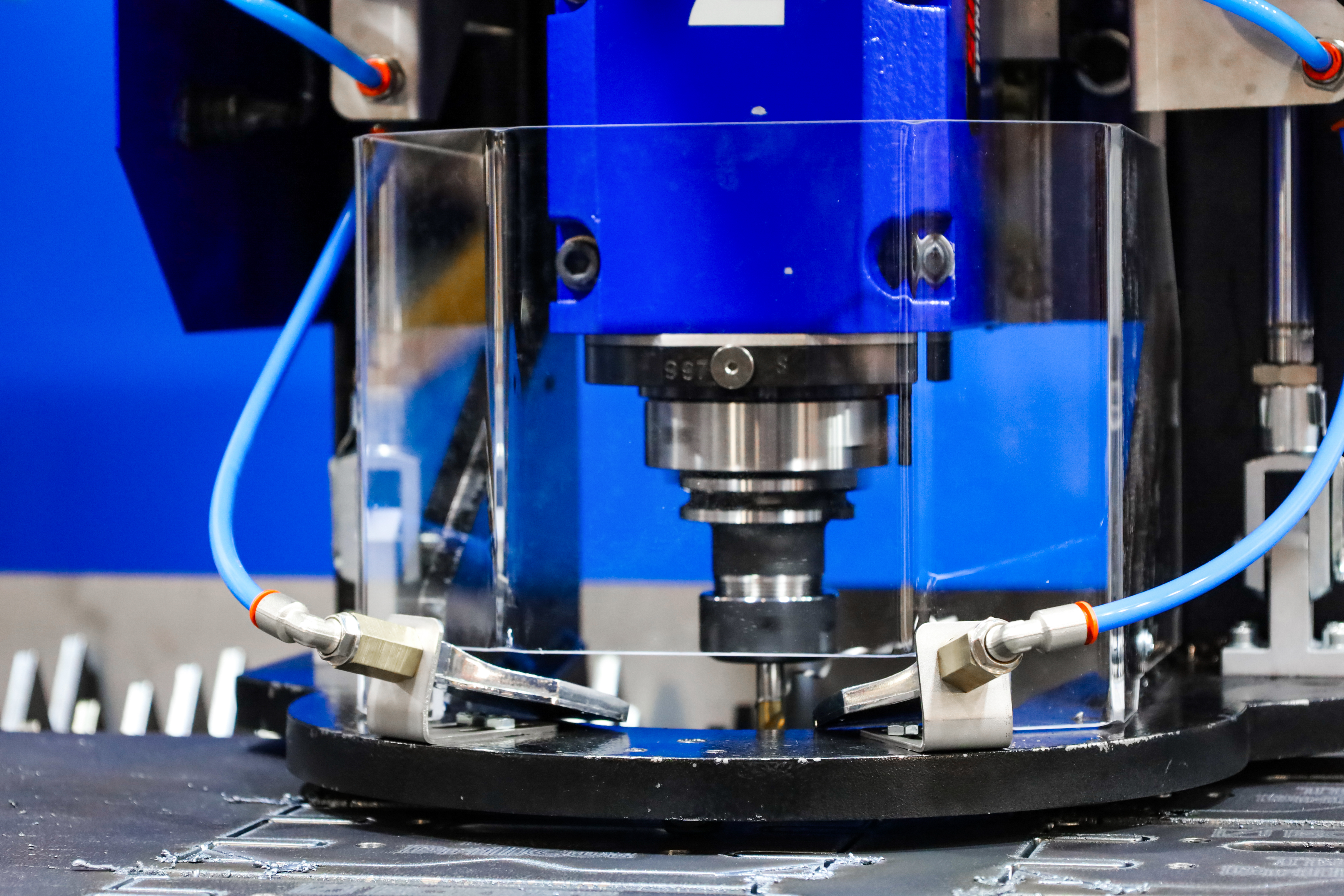

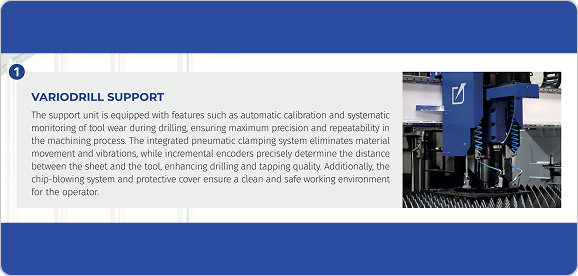

VarioDrill High-Precision Unit

The VarioDrill system ensures accurate drilling, tapping, and countersinking without material hardening. It is ideal when high precision is required or when reducing thermal piercing is critical.

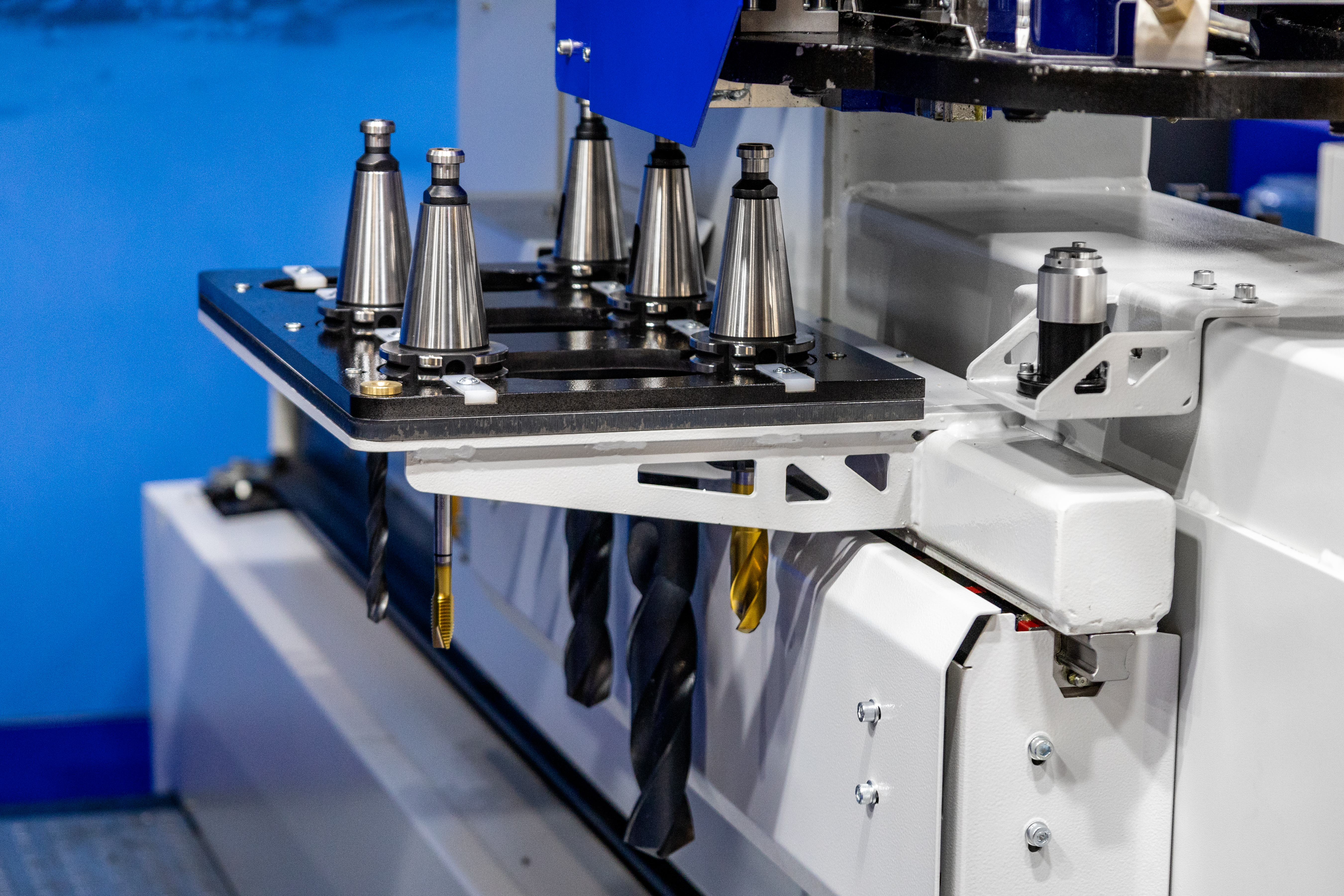

Automatic Tool Changing System

Equipped with a 6-position tool magazine, the system automatically switches between drilling, tapping, and countersinking operations, eliminating manual intervention and improving productivity.

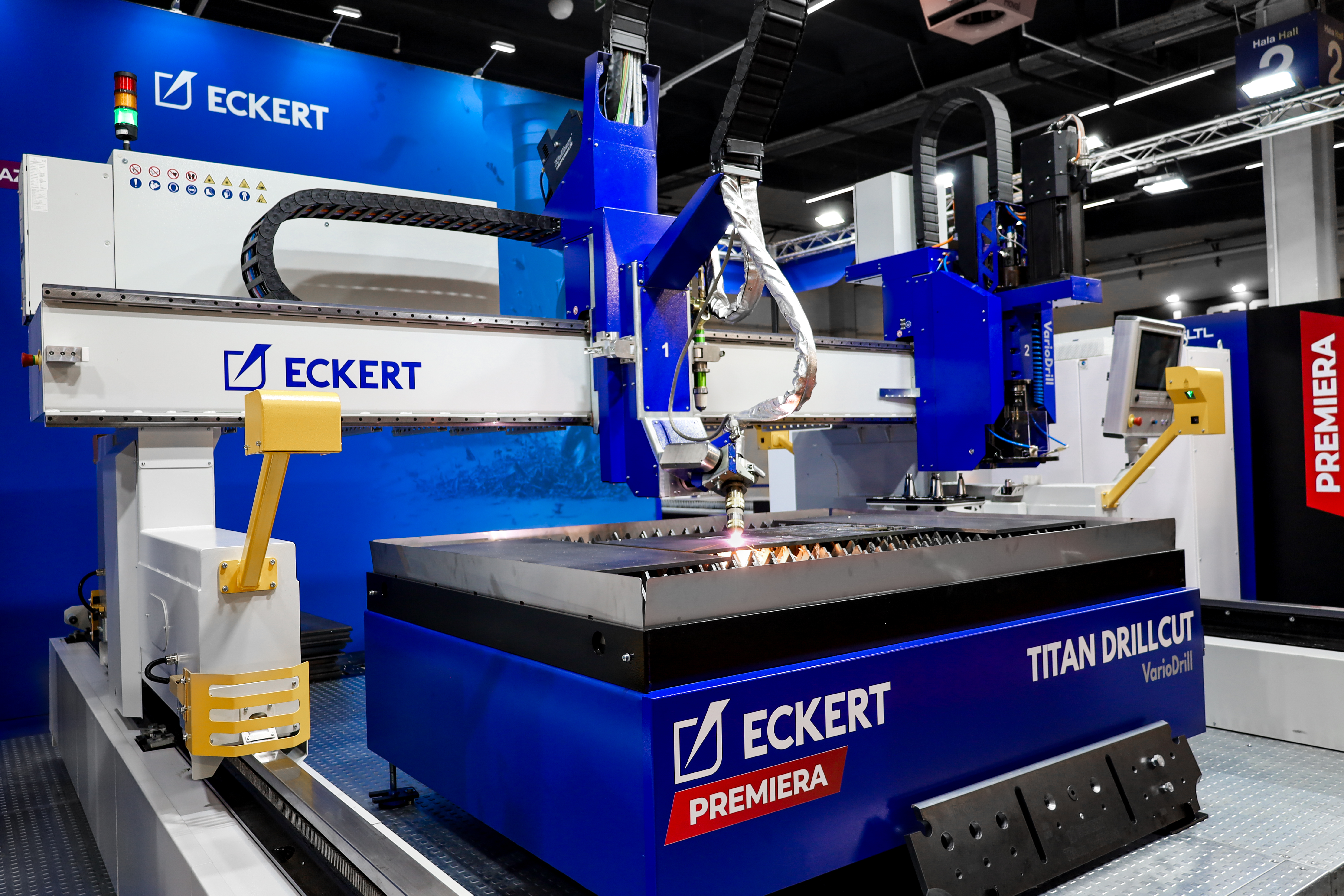

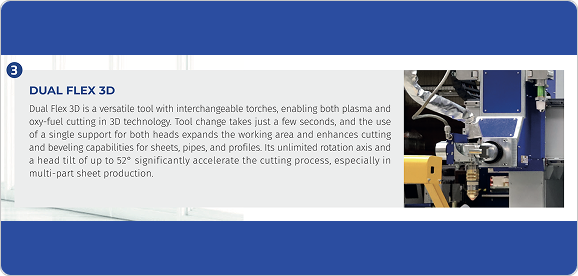

Dual Flex 3D Cutting Head

Supports both plasma and oxy-fuel cutting with fast torch exchange. The head allows multi-angle cutting with ±52° deflection and full rotation, enabling complex bevel and 3D cutting applications.

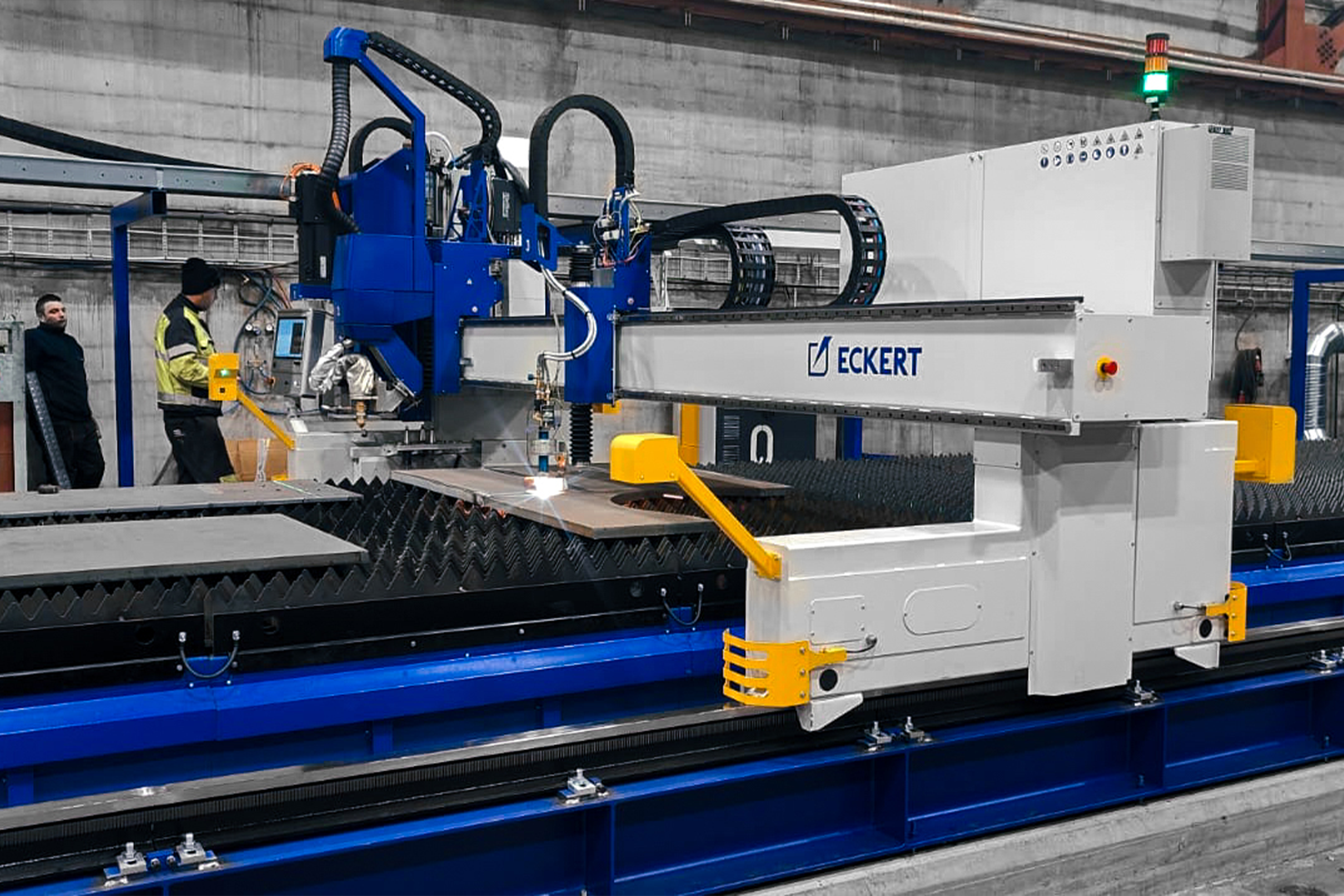

HD3000 Torch Height Control System

Ensures optimal distance between torch and material using high-precision sensors and servo control, delivering superior cut quality and stability.

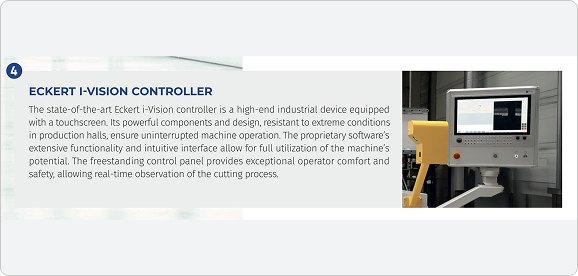

Advanced CNC Controller

The industrial CNC system features a robust touchscreen interface, intuitive operation, and real-time monitoring, enabling efficient control and maximum machine utilization.

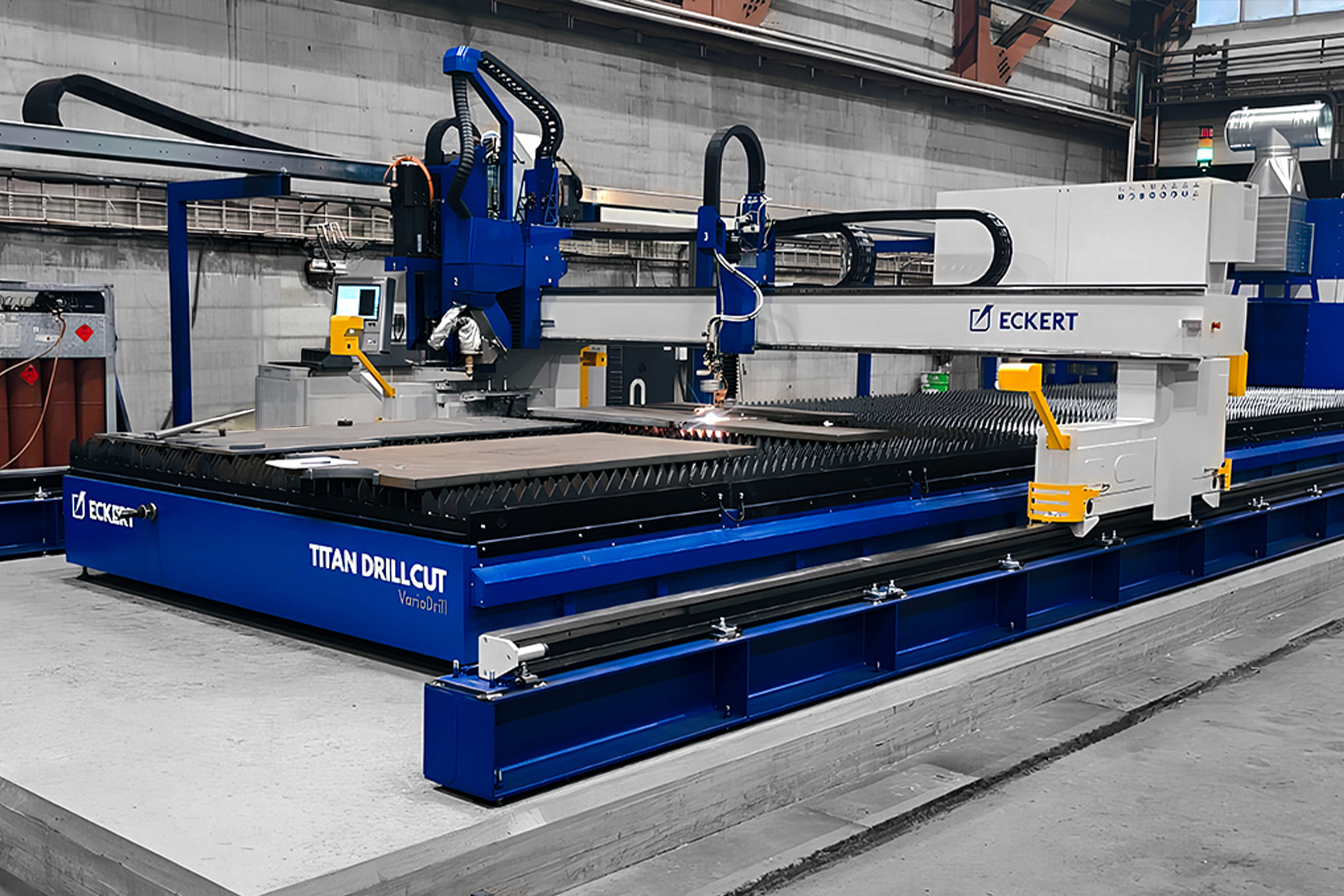

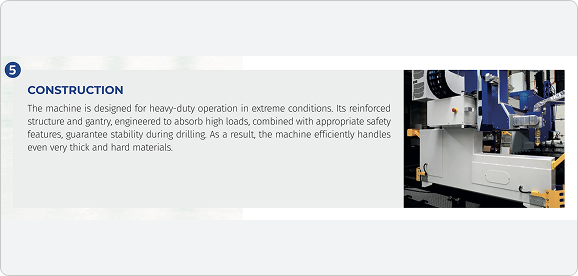

Heavy-Duty Machine Construction

Reinforced structure and gantry design ensure stability during cutting and drilling operations, even for thick and heavy materials in extreme industrial conditions.

Frequently Asked Questions

Everything you need to know about the TITAN DRILLCUT SERIES COMBO

1. What is the Titan DrillCut machine used for

The Titan DrillCut is an advanced all in one cutting and machining system used for plasma cutting, oxy fuel cutting, and precision drilling of heavy plates, making it ideal for industries like structural steel, shipbuilding, and infrastructure.

2. What makes Titan DrillCut different from standard cutting machines

Unlike standard machines, Titan DrillCut combines cutting and drilling in a single setup, eliminating secondary operations and improving productivity, accuracy, and workflow efficiency.

3. What processes can be performed on the Titan DrillCut machine

The machine supports plasma cutting, oxy fuel cutting, drilling, tapping, countersinking, and bevel cutting, allowing complete part processing in one program.

4. What is the maximum thickness the Titan DrillCut can handle

The machine can process material thickness up to 200 to 300 mm depending on the cutting method, making it suitable for heavy duty industrial applications.

5. What drilling capabilities does the Titan DrillCut offer

The integrated VarioDrill system supports drilling from Ø6 to Ø40 mm and tapping from M4 to M20, ensuring high precision hole processing without heat affected zones.

6. How does the automatic tool changer improve productivity

The 6 position automatic tool changer allows seamless switching between drilling, tapping, and countersinking tools, reducing manual intervention and saving production time.

7. Can Titan DrillCut perform bevel and 3D cutting

Yes, the Dual Flex 3D cutting head supports multi angle cutting up to ±52 degrees, enabling bevel cutting and complex 3D profiles for welding preparation.

8. Is the Titan DrillCut suitable for continuous industrial production

Yes, the machine is designed for 24 by 7 operation with a heavy duty structure, ensuring consistent performance in high demand industrial environments.

9. How does the machine ensure cutting and drilling accuracy

The system uses advanced CNC control, HD3000 torch height control, servo driven motion, and precision drilling technology to maintain high accuracy and repeatability.

10. Is Titan DrillCut a cost effective solution for fabrication industries

Yes, by combining multiple processes into one machine, reducing setup time, minimizing rework, and improving efficiency, Titan DrillCut offers strong return on investment for large scale fabrication.

Need Help Choosing the Right Machine?

Our comprehensive buying guide covers everything you need to know about TITAN DRILLCUT SERIES COMBO, power selection, applications, and more.
Buying Guide View Complete Buying Guide Buying Guide

Get in Touch

To know more about the machine, send us an enquiry and we will get back to you.

Confirmation
Interested in the TITAN DRILLCUT SERIES COMBO?

Contact our team for detailed specifications, pricing, and consultation
