3D Laser Cutting Machine
TLF SERIES FIBER LASER
5 Axis for 3D & Bevel Cutting
Multi Axis, 3D Profile & Precision
Advanced multi-axis fiber laser cutting solution designed for complex 3D profiles, bevel cutting, and high-precision fabrication across large workpieces.

Product Showcase

Watch our product in action, and product images for better understanding

    Key Features

  • True 5-axis cutting capability (X, Y, Z, A, B, C axes)
  • 360° continuous rotation with ±135° bevel cutting capability
  • Multi-process capability for 3D cutting, 2D cutting, and welding
  • Large working envelope for oversized components
  • High-speed linear motor drive system
  • Direct-drive cutting head with closed-loop control
  • Backlash-free motion for high precision performance
  • Flexible table configurations (fixed, shuttle, rotary)
  • Intelligent FANUC CNC system with real-time control
  • Automatic cutting head calibration and diagnostics
  • Advanced gas control system (Air, Nitrogen, Oxygen)
  • High OEE with low maintenance and downtime

    Key Applications

  • Automotive body and structural components
  • Aerospace and precision engineering parts
  • Heavy fabrication and structural steel processing
  • Shipbuilding and marine components
  • Construction and infrastructure components
  • Bevel cutting for welding preparation
  • Complex 3D profile cutting applications
  • Industrial machinery and equipment manufacturing
  • Mold, die, and formed component processing
  • Sheet, tube, and profile hybrid applications

Material Thickness & Laser Power Chart

Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.

View Full Chart ->
×

Material Thickness & Laser Power Chart

Laser Power 3 kW 4 kW 6 kW 8 kW 10 kW 12 kW 15 kW 20 kW 30 kW
Cutting Thickness on Metals mm (inch)
Mild Steel (MS) (O₂) 20 (3/4") 22 (7/8") 25 (1")* 28 (9/8")* 30 (19/16")* 40 (25/16")* 45 (7/4")* 50 (31/16")* 60 (19/8")*
Mild Steel (MS) (N₂ / Air) 6 (1/4") 6 (1/4") 8 (5/16") 10 (3/8") 12 (1/2") 12 (1/2") 16 (5/8") 20 (13/16") 25 (1")*
Stainless Steel (SS) (O₂) 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8")* 10 (3/8") 10 (3/8") 10 (3/8") 10 (3/8")
Stainless Steel (SS) (N₂ / Air) 8 (5/16") 10 (3/8") 16 (5/8")* 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")* 40 (25/16")*
Aluminum (AL) (N₂) 8 (5/16") 10 (3/8") 16 (5/8")* 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")* 40 (25/16")*
Brass (Br) (N₂) 6 (1/4") 8 (5/16") 12 (1/2") 16 (5/8") 20 (13/16") 25 (1")* 30 (19/16")* 32 (5/4")* 35 (11/8")*
Copper (Cu) (O₂) 5 (3/16") 6 (1/4") 8 (5/16") 10 (3/8") 12 (1/2") 16 (5/8") 18 (11/16") 20 (13/16") 22 (7/8")
Galvanized Iron (GI) (N₂ / Air) 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8") 3 (1/8")

Overview

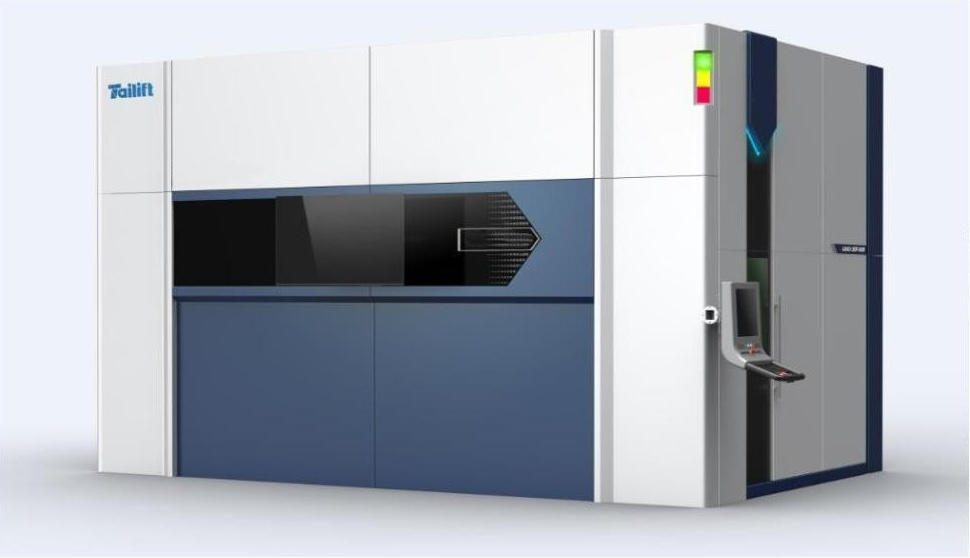

The TLF Series 5-Axis Fiber Laser Cutting Machine is engineered for advanced manufacturing environments requiring multi-dimensional cutting, high precision, and maximum flexibility.

With the ability to perform 3D cutting, bevel cutting, and welding operations within a single system, the machine significantly enhances productivity, reduces setup time, and minimizes operational complexity.

Its large working area, combined with high-speed motion systems and intelligent CNC control, makes it ideal for processing complex geometries, formed components, and large industrial parts with exceptional accuracy, speed, and repeatability.

Technical Specifications

Specification Option 1
Model TLF-3015
Machine Type 5-Axis Fiber Laser Cutting Machine
Laser Power 2KW – 6KW
Acceleration (YXZ) 1G
Resultant Speed 155 m/min
Max Speed (XYZ) 100 m/min
Axis Configuration X, Y, Z + A, B, C Axis
A-Axis Rotation 360° Continuous
B-Axis Range ±135°
C-Axis Range ±12 mm
Positioning Accuracy (YXZ) ±0.03 mm
Angular Accuracy (AB) ±0.005°
Max Speed (A/B Axis) 540°/s
Control System FANUC CNC System
Table Options Fixed / Shuttle / Rotary
Working Area (X × Y × Z) 3050 × 1530 × 612 mm
Machine Dimensions (L×W×H) 7098 × 8474 × 3582 mm
Machine Weight Approx. 10,000 kg

Technology Highlights

⚠️ No Data Found

Product Description

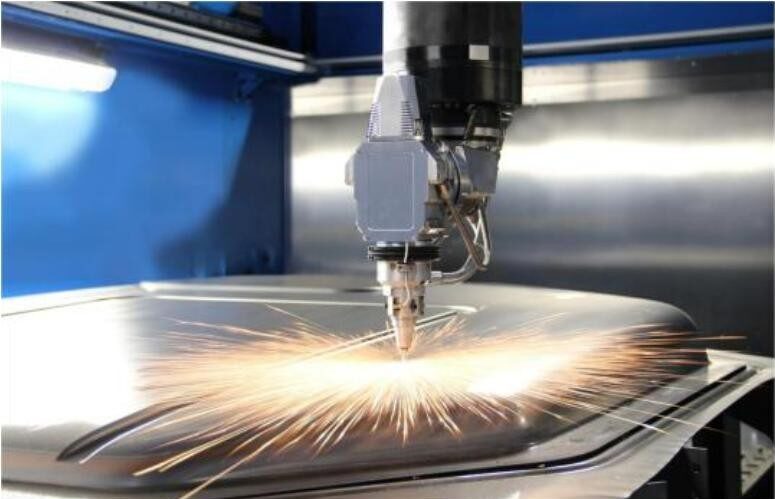

Advanced 5-Axis Cutting Head

The machine features a high-performance 5-axis cutting head with A-axis (360° continuous rotation), B-axis (±135° bevel movement), and C-axis (±12 mm follower adjustment). This enables precise multi-angle cutting and complex contour processing.

High-Speed Linear Motor Drive System

Equipped with linear motor drives on X, Y, and Z axes, the system ensures backlash-free motion, high acceleration (up to 1G), and superior positioning accuracy.

Large Processing Capacity

With a working range of 3050 × 1530 × 612 mm, the machine supports large workpieces while maintaining a compact footprint.

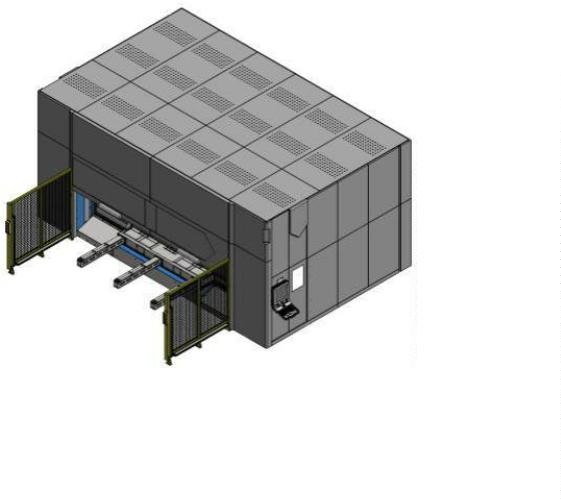

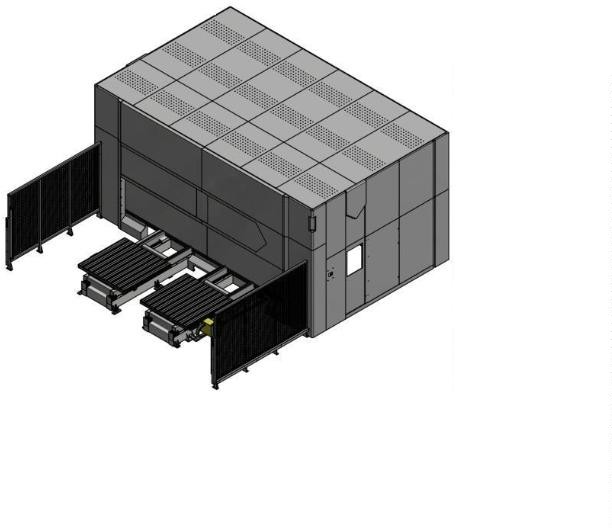

Flexible Table Configurations

Available with fixed table, shuttle table, and rotary table options, allowing customization based on production requirements and workflow optimization.

Intelligent CNC Control System

Powered by FANUC CNC with touchscreen HMI, the system provides real-time monitoring, parameter editing, diagnostics, and remote service connectivity.

Efficient Beam Guidance System

Fiber-optic beam delivery ensures stable energy transmission with minimal loss, enabling consistent cutting performance.

Advanced Gas & Pneumatic System

Supports multiple process gases including nitrogen, oxygen, and air, with integrated filtration and pressure control for optimal cutting quality.

Automatic Lubrication & Cooling System

Equipped with intelligent lubrication and dual-circuit water cooling systems to ensure long-term reliability and consistent machine performance.

Safety Enclosure & Operator Protection

Fully enclosed machine with safety interlocks, protective glass, light curtains, and dust extraction system ensures operator safety and compliance with international standards.

Frequently Asked Questions

Everything you need to know about the TLF SERIES FIBER LASER

1. What is the TLF Series 5-axis fiber laser cutting machine used for?

The TLF Series is designed for advanced 3D laser cutting, bevel cutting, and complex profile processing, making it ideal for industries like automotive, aerospace, heavy fabrication, and structural manufacturing.

2. What does 5-axis laser cutting mean in the TLF Series?

The TLF Series operates on X, Y, Z linear axes along with A, B, and C rotational axes, allowing multi-directional cutting, complex geometries, and precise bevel angles in a single setup.

3. What is the bevel cutting capability of the TLF Series?

The machine offers ±135° bevel cutting with 360° continuous rotation, enabling precise edge preparation for welding and complex angled cuts.

4. Can the TLF Series perform both 2D and 3D cutting?

Yes, the machine supports 2D cutting, 3D cutting, and even welding applications, making it a highly versatile solution for multi-process manufacturing.

5. What laser power options are available in the TLF Series?

The TLF Series supports 2 kW to 6 kW fiber laser power, optimized for precision cutting and complex geometry processing rather than ultra-thick plate cutting.

6. What types of materials can the TLF Series cut?

The machine can cut a wide range of materials including mild steel, stainless steel, aluminum, and other engineering metals, supporting both flat and formed components.

7. How accurate is the TLF Series for precision applications?

The machine offers ±0.03 mm positioning accuracy and ±0.005° angular accuracy, ensuring extremely precise cutting for complex and high-value components.

8. What is the working size and capacity of the TLF Series?

The machine supports a working area of 3050 × 1530 × 612 mm, making it suitable for large components while maintaining high precision.

9. What industries benefit the most from the TLF Series?

It is ideal for automotive structures, aerospace components, shipbuilding, heavy fabrication, mold and die processing, and infrastructure applications requiring complex geometry cutting.

10. Why choose the TLF Series over standard 2D laser cutting machines?

The TLF Series offers multi-axis flexibility, bevel cutting capability, complex 3D processing, and multi-operation functionality, making it the perfect upgrade for manufacturers working with advanced and high-precision components.
