Heavy-Duty Industrial Performance
The Zircon Extreme is specifically developed for continuous high-load operations in heavy industries. Its reinforced structure and advanced drive systems ensure long-term durability and consistent performance.
Plasma Cutting Machine
ZIRCON EXTREME SERIES PLASMA
Extreme Heavy Duty Plasma
24/7, Extreme Precision & High Reliability
24/7, Extreme Precision & High Reliability
High-performance thermal cutting solution engineered for extreme conditions, delivering maximum precision, reliability, and continuous production for heavy industry applications.
Product Showcase
Watch our product in action, and product images for better understanding
-
Designed for continuous 24/7 operation in four-shift industrial environments -
High precision cutting even under extreme load conditions
-
Capable of cutting material thickness up to 300 mm
-
Supports high-power plasma sources up to 800 A
-
Consistent cutting quality even at elevated material temperatures
-
Advanced thermal management system for stable performance
-
Integrated camera system for accurate positioning
-
High safety standards with operator protection features
-
Robust heavy-duty gantry construction
-
Optimized for large-scale and heavy fabrication industries
Key Features
-
Heavy steel fabrication and structural manufacturing -
Shipbuilding and offshore industries
-
Oil and gas equipment manufacturing
-
Pressure vessels and boiler fabrication
-
Mining and heavy machinery components
-
Infrastructure and construction projects
-
Power plant equipment manufacturing
-
Industrial fabrication units with high production demand
Key Applications
Material Thickness & Laser Power Chart
Compare cutting capacities from 3kW to 30kW to select the ideal laser power for your material thickness requirements.
Overview
The Zircon Extreme CNC Plasma & Oxy-Fuel Cutting Machine is engineered for heavy industrial environments requiring continuous operation, extreme precision, and high reliability.
Designed to operate 24/7 under demanding production conditions, the machine ensures consistent cutting quality even when processing thick materials and high-temperature steel plates.
With its advanced thermal management system, high-performance plasma compatibility, and robust structural design, the Zircon Extreme delivers exceptional productivity, operational stability, and long-term performance for large-scale manufacturing, heavy fabrication, and industrial processing applications.
Designed to operate 24/7 under demanding production conditions, the machine ensures consistent cutting quality even when processing thick materials and high-temperature steel plates.
With its advanced thermal management system, high-performance plasma compatibility, and robust structural design, the Zircon Extreme delivers exceptional productivity, operational stability, and long-term performance for large-scale manufacturing, heavy fabrication, and industrial processing applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Zircon Extreme |
| Drives | Servo AC |
| Cutting Width | 2000 – 7000 mm |
| Max Cutting Length | From 1500 mm (extendable) |
| Positioning Speed | 25000 mm/min |
| Cutting Thickness | Up to 300 mm |
| Cutting Quality | DIN-EN ISO 9013 |
| Positioning Accuracy | DIN-EN 28206 |
| Working Table Height | 740 – 760 mm |
Hypertherm
| Model | Max Piercing | Max From Edge |
|---|---|---|
| Powermax 45 SYNC | 12 mm | 29 mm |
| Powermax 65 SYNC | 16 mm | 32 mm |
| Powermax 85 SYNC | 20 mm | 38 mm |
| Powermax 105 SYNC | 22 mm | 50 mm |
| Powermax 125 | 25 mm | 57 mm |
| MAXPRO 200 | 32 mm | 75 mm |
| XPR 170 | 40 mm | 60 mm |
| XPR 300 | 50 mm | 80 mm |
| XPR 460 | 64 mm | 102 mm |
| HPR 400 XD | 50 mm | 80 mm |
| HPR 800 XD | 50 mm | 80 mm |
| Model | Max Piercing | Max From Edge |
|---|---|---|
| CutFire 100i | 20 mm | 40 mm |
| K200 | 35 mm | 60 mm |
| HiFocus 161i Neo | 30 mm | 50 mm |
| HiFocus 280i Neo | 40 mm | 70 mm |
| HiFocus 360i Neo | 50 mm | 80 mm |
| HiFocus 440i Neo | 50 mm | 120 mm |
| HiFocus 600i Neo | 80 mm | 160 mm |
| SmartFocus 130 | 25 mm | 40 mm |
| SmartFocus 170 | 30 mm | 50 mm |
| SmartFocus 200 | 30 mm | 60 mm |
| SmartFocus 300 | 40 mm | 80 mm |
| SmartFocus 400 | 50 mm | 100 mm |
| Q1500 | 30 mm | 60 mm |
| Q3000 | 50 mm | 80 mm |
| Q4500 | 50 mm | 120 mm |
| Model | Max Piercing | Max From Edge |
|---|---|---|
| UltraCut 130 XT | 25 mm | 40 mm |
| UltraCut 200 XT | 40 mm | 65 mm |
| UltraCut 300 XT | 45 mm | 75 mm |
| UltraCut 400 XT | 50 mm | 90 mm |
Technology Highlights
⚠️ No Data Found
Product Description
High Precision Cutting Under Load
The machine maintains exceptional cutting accuracy and repeatability even under extreme operational conditions, making it ideal for critical industrial applications.

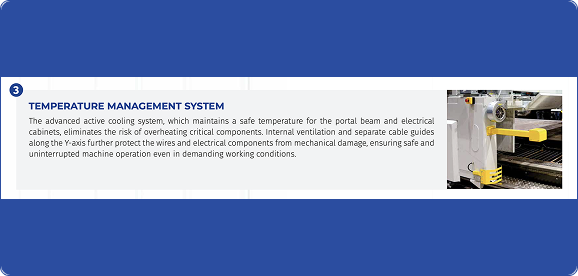

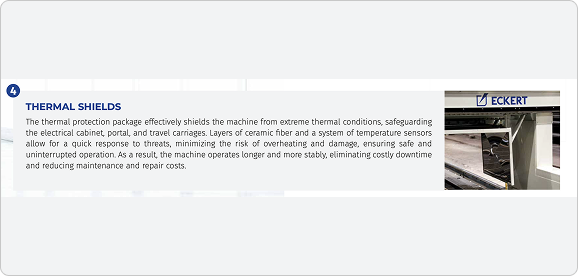

Advanced Thermal Management System
Equipped with temperature sensors, cooling systems, and heat shields, the machine maintains optimal internal conditions, ensuring stable accuracy and protecting key components.
Intelligent Positioning System
An integrated camera system enables precise torch positioning, reducing setup time and improving cutting accuracy across large workpieces.

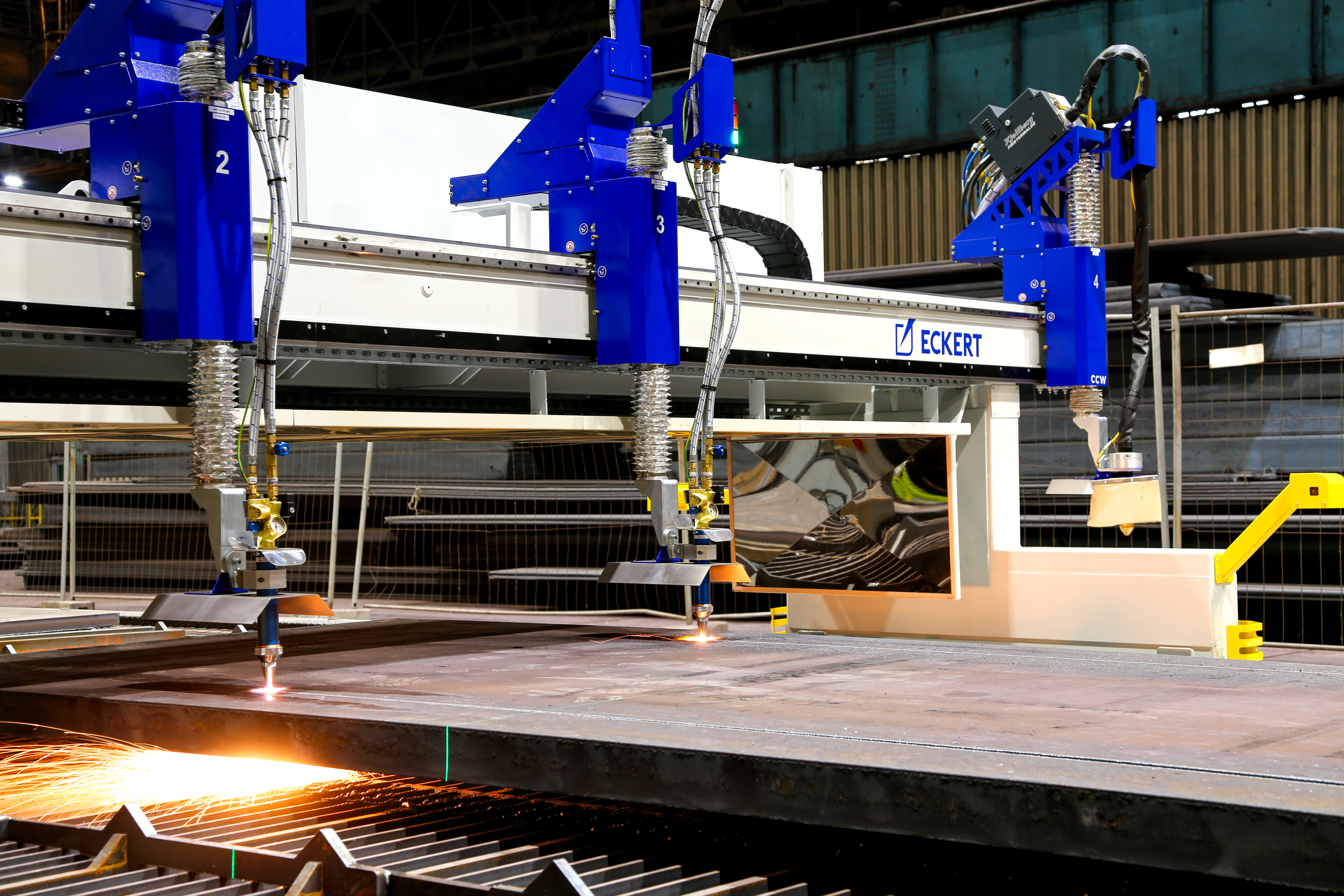

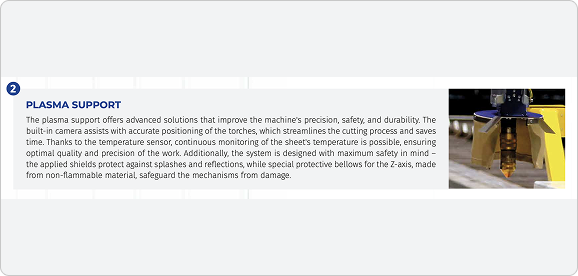

Plasma Support System
Advanced plasma support ensures optimal cutting distance, improved safety, and consistent cutting quality even during high-speed operations.

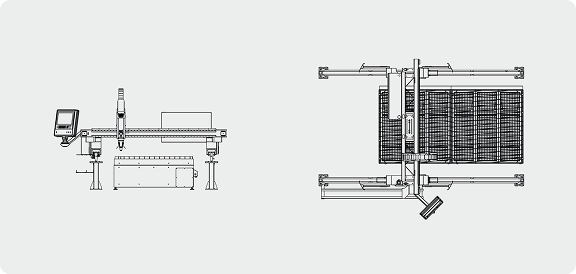

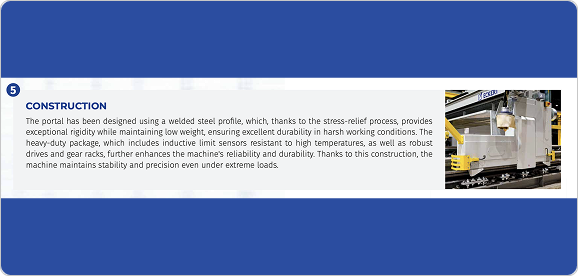

Robust Gantry Construction
The heavy-duty welded steel gantry is designed to withstand extreme loads while maintaining structural rigidity and precision.

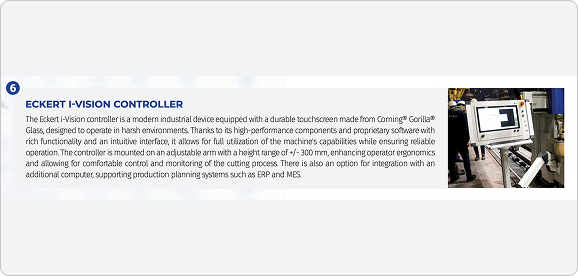

Operator-Friendly CNC Control
The Eckert i-Vision controller features a durable touchscreen interface, intuitive controls, and compatibility with ERP and MES systems for smart production integration.
Frequently Asked Questions
Everything you need to know about the ZIRCON EXTREME SERIES PLASMA
1. What is the Zircon Extreme CNC Plasma and Oxy Fuel Cutting Machine used for
The Zircon Extreme is designed for heavy industrial applications such as shipbuilding, oil and gas, infrastructure, power plants, and large scale steel fabrication where continuous high load cutting is required.
2. Can Zircon Extreme run continuously for 24/7 production
Yes, the machine is specifically engineered for continuous 24 by 7 operation across multiple shifts, making it ideal for high production environments that demand reliability and uptime.
3. What is the maximum thickness Zircon Extreme can cut
The machine can process material thickness up to 300 mm using plasma and oxy fuel cutting, making it suitable for extremely heavy duty applications.
4. What types of materials can Zircon Extreme cut
Zircon Extreme can cut a wide range of materials including mild steel, alloy steel, and other industrial grade metals using both plasma and oxy fuel technologies.
5. How does Zircon Extreme maintain accuracy in extreme conditions
The machine uses a robust gantry structure, advanced thermal management system, and precision motion control to ensure consistent accuracy even under high temperature and heavy load conditions.
6. What plasma power capacity is supported in Zircon Extreme
Zircon Extreme supports high power plasma systems up to 800 Amps, enabling deep penetration cutting and high performance processing of thick materials.
7. What makes Zircon Extreme suitable for heavy industry compared to standard machines
Unlike standard machines, Zircon Extreme is built for extreme environments with reinforced structure, thermal stability systems, and high load handling capability, ensuring durability and performance in demanding applications.
8. Does Zircon Extreme support large format sheet processing
Yes, the machine offers cutting widths from 2000 mm up to 7000 mm and expandable lengths, making it ideal for large format plates and structural components.
9. How does the camera based positioning system help in cutting
The integrated camera system allows precise torch alignment, reduces setup time, and improves cutting accuracy, especially for large and complex workpieces.
10. Is Zircon Extreme a cost effective solution for large scale fabrication
Yes, despite being a heavy duty machine, it offers high return on investment through continuous operation, reduced downtime, consistent quality, and efficient processing of thick materials.
